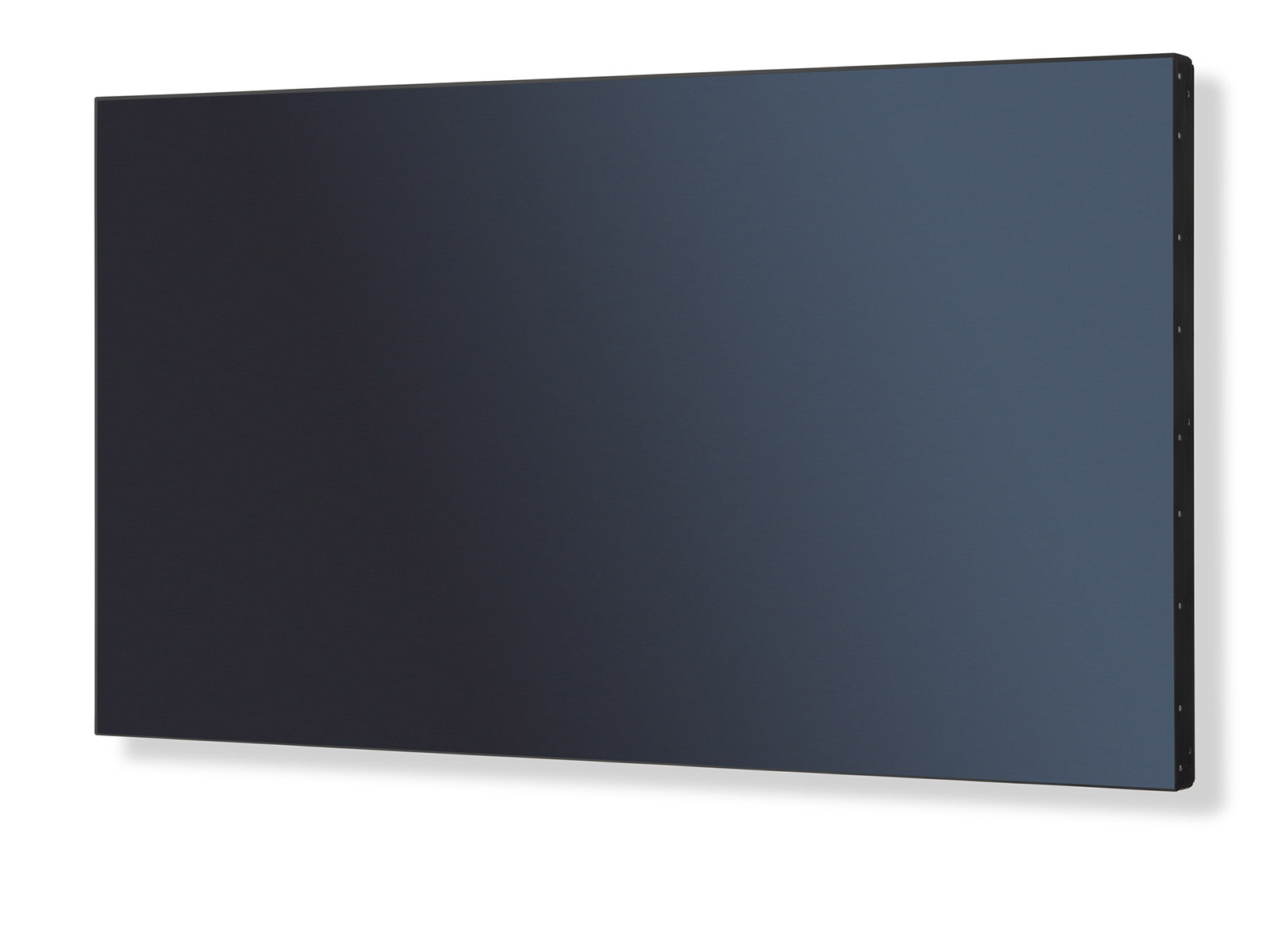

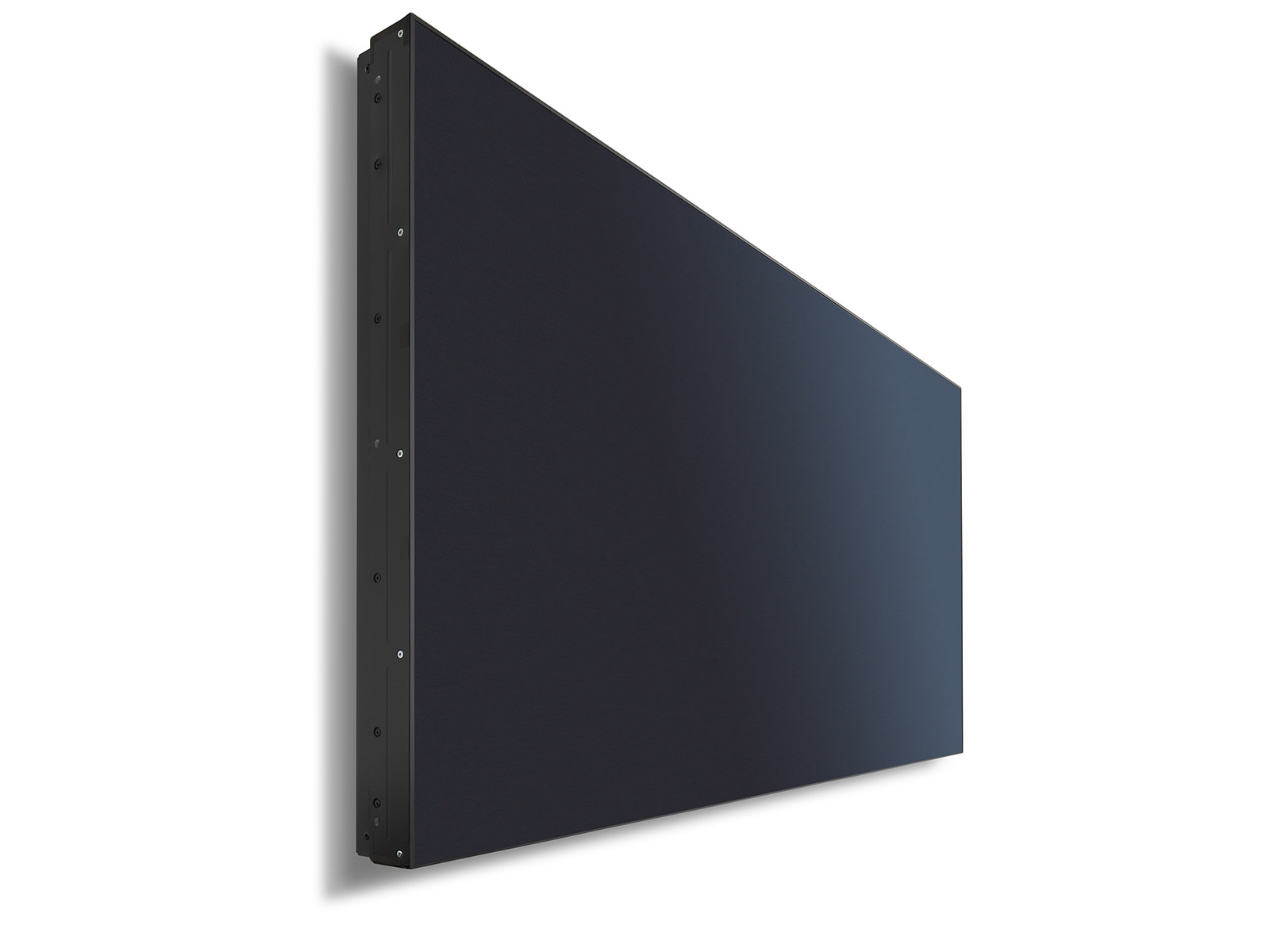

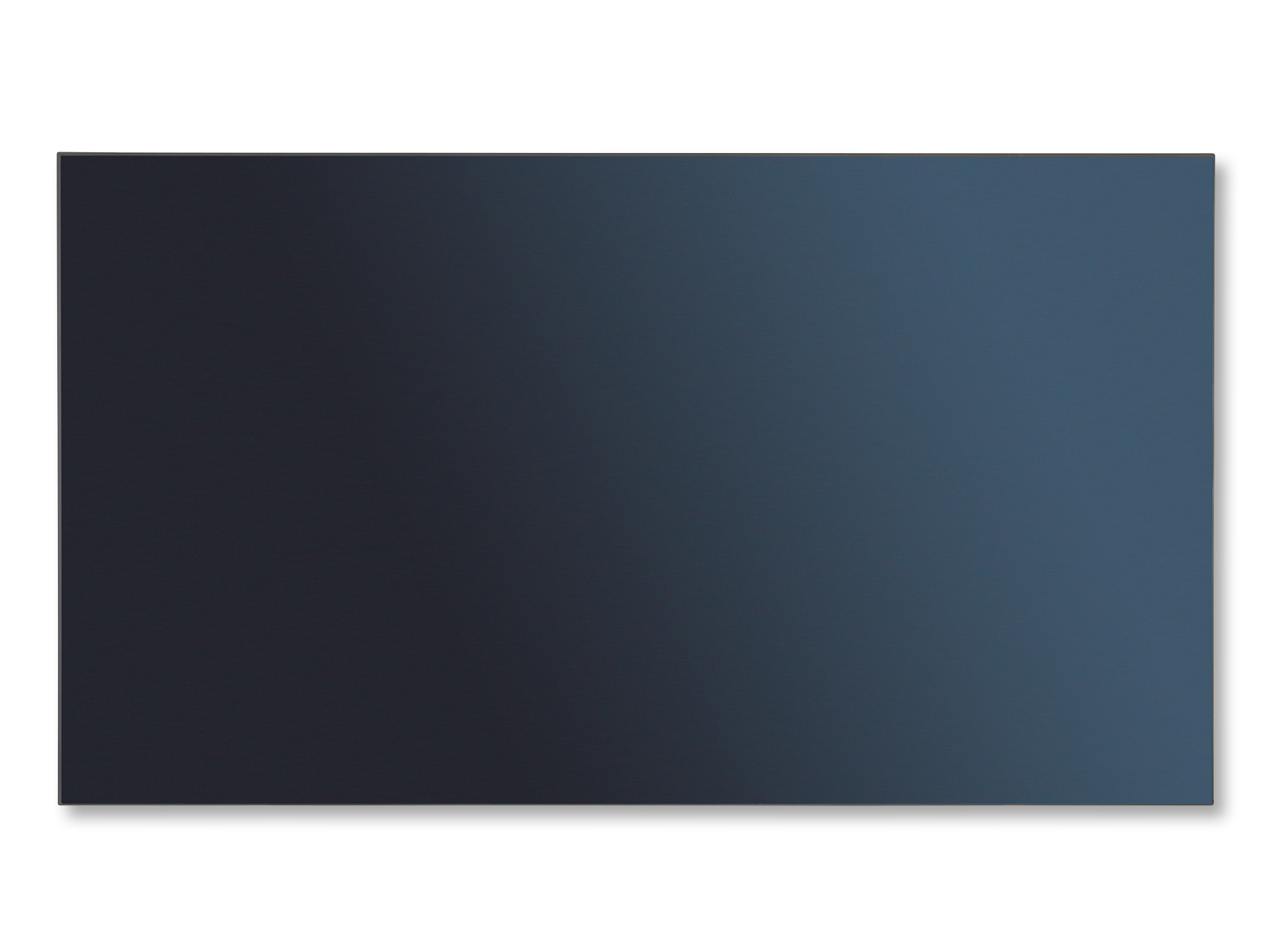

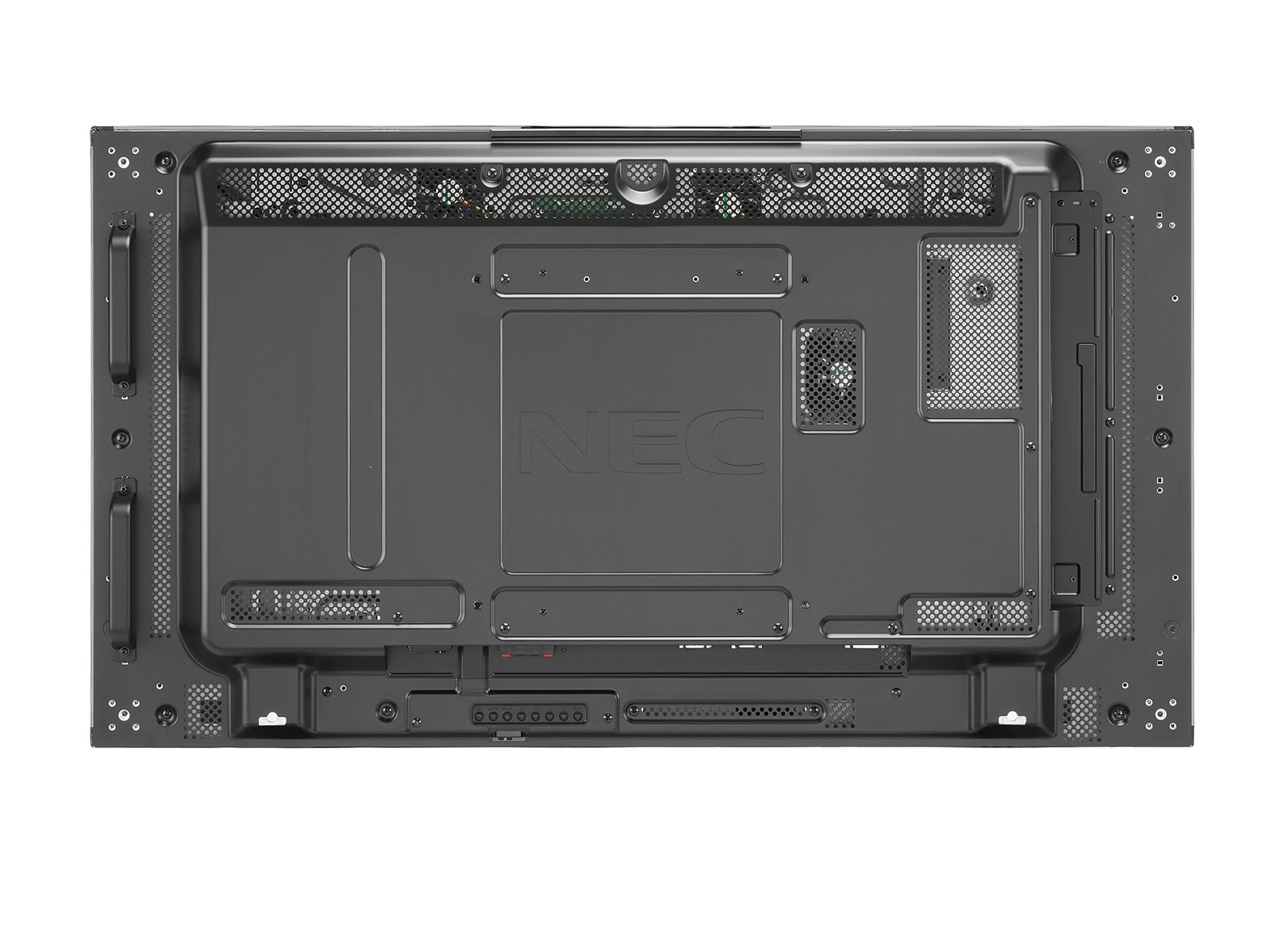

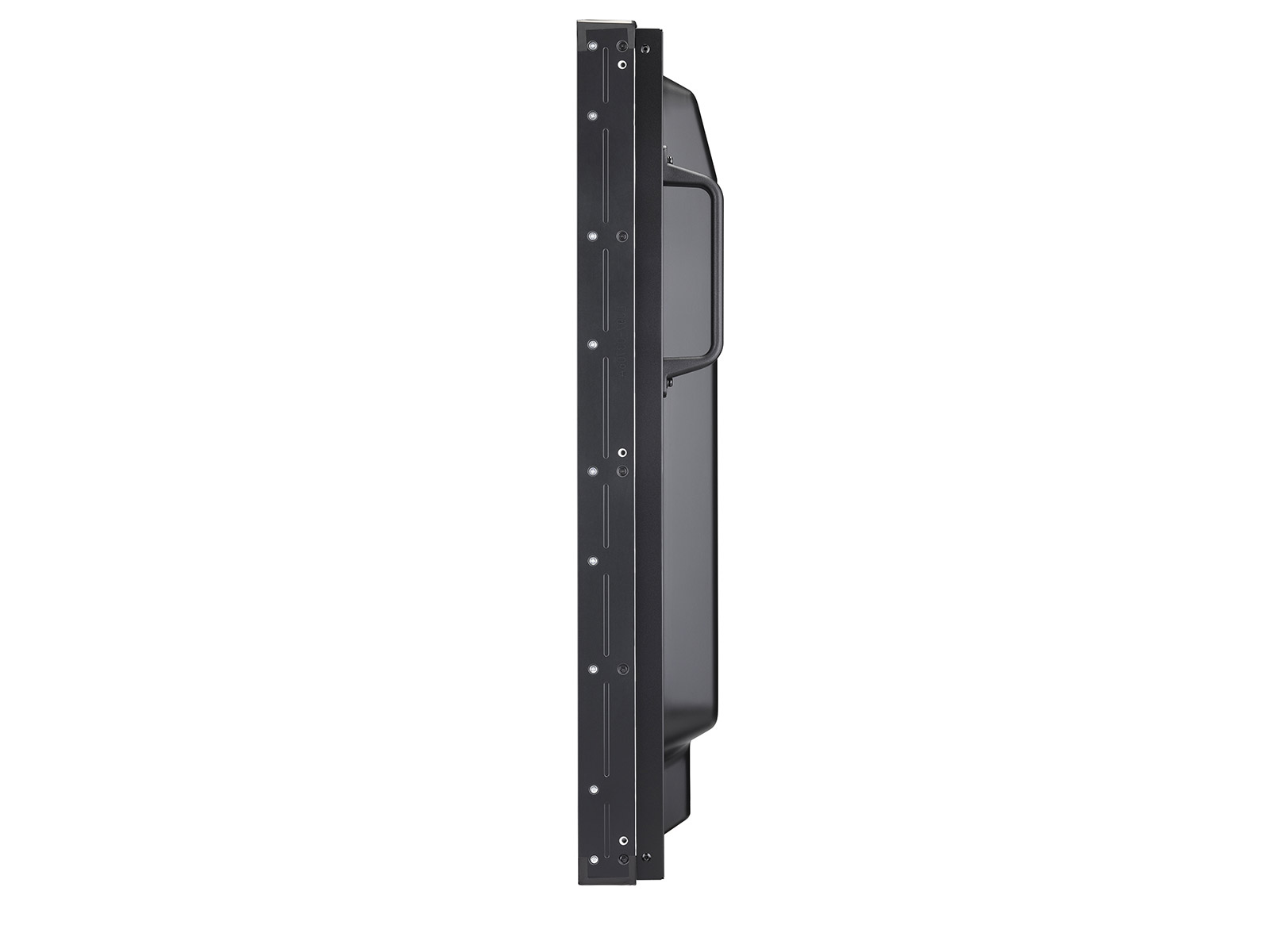

NEC MultiSync® X464UNV-2
The new ultra slim X464UNV-2 features a 5.6 mm bezel to create impressive high resolution videowalls with barely visible bezels. New Connectivity and Sensors allow additional creativity in the content displayed. The unique built-in NFC sensor in combination with NEC’s new Android app reduces installation and maintenance times, especially useful on larger installations.
The perfect picture quality and high product reliability make the X464UNV-2 an ideal solution for retail signage, control room applications, transport installations and the rental market.
Display
Panel Technology
S-PVA TFT with direct white LED backlights
Active Screen Area (W x H) [mm]
1,018.1 x 572.7
Screen Size [inch/cm]
46 / 117
Aspect Ratio
16:9
Brightness [cd/m²]
500, 300 Eco (shipment setting)
Contrast Ratio (typ.)
3500:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
44

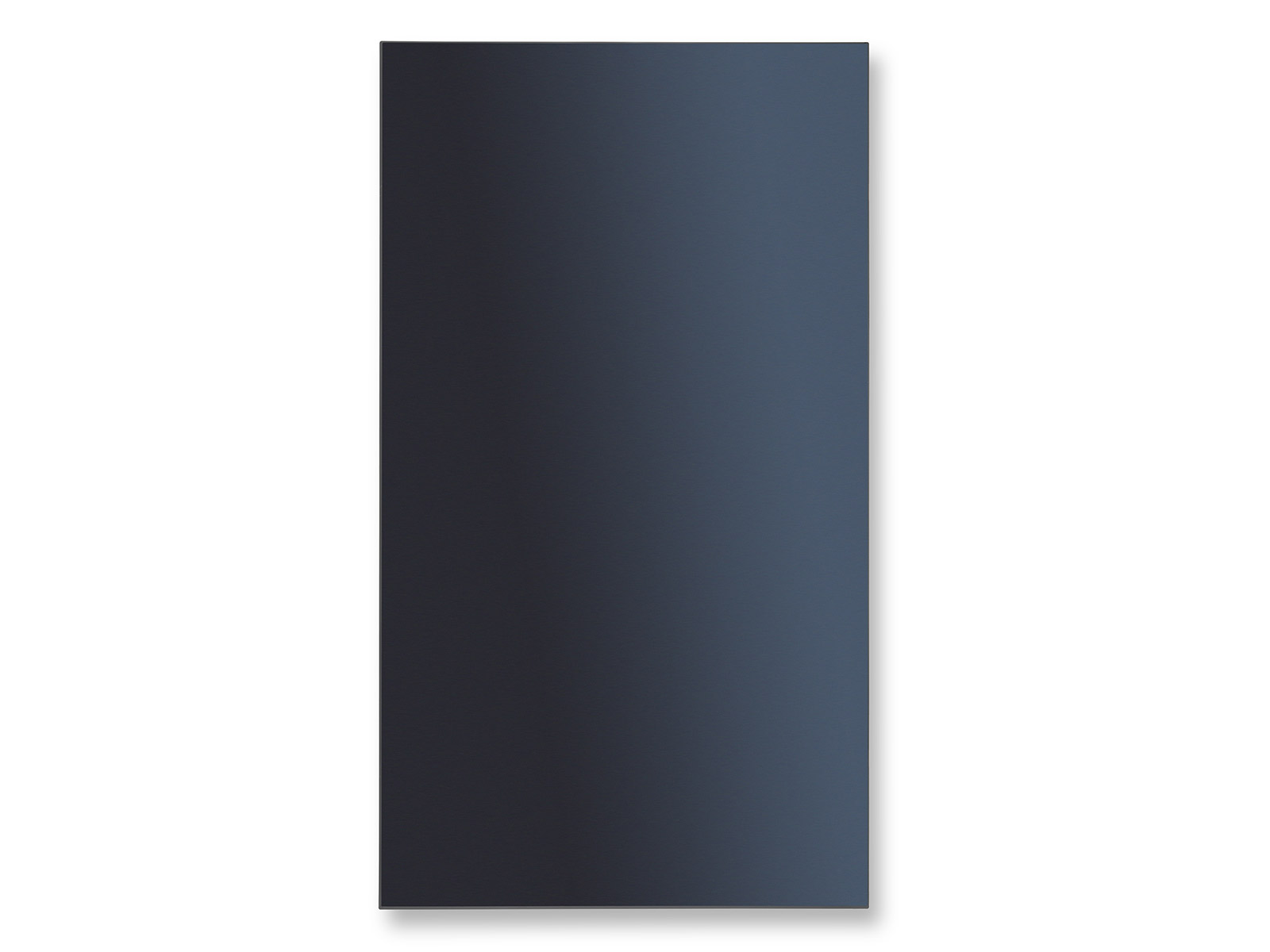

Supported Orientation
Face Up 1; Landscape; Portrait
Resolution
Native Resolution
1920 x 1080 at 60 Hz
Supported on DisplayPort and HDMI
1024 x 768; 1080i; 1080p; 1280 x 1024; 1280 x 768; 1360 x 768; 1600 x 1200; 1920 x 1080; 3840 x 2160 (24/30 Hz); 480p (60 Hz); 576p (50 Hz); 640 x 480; 720p (50/60 Hz); 800 x 600
Supported on HDMI only
1360 x 768; 3840 x 2160 (25 Hz); 4096 x 2160 (24 Hz); 480i (60 Hz); 576i (Value Hz)
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 91.1
Vertical Frequency [Hz]
50 - 85

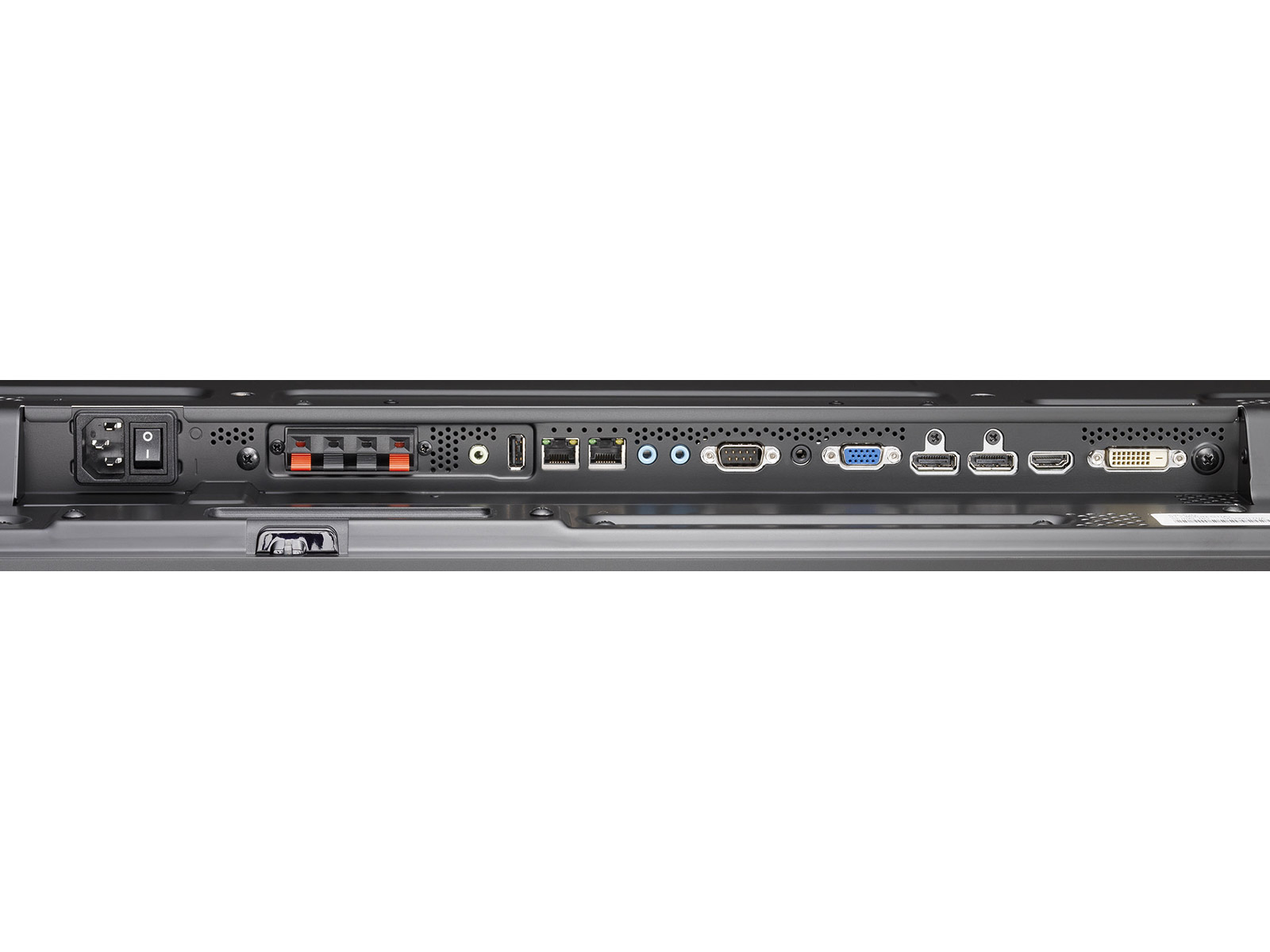

Connectivity
Input Video Analogue
1 x D-sub 15 pin
Input Video Digital
1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x Interface Extension Slot; 1 x OPS Slot
Input Audio Analogue
2 x 3,5 mm jack
Input Audio Digital
1 x DisplayPort; 1 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital
1 x DisplayPort out (loop through:DisplayPort, DVI-D, HDMI, Interface Extension Slot, OPS)
Output Audio Analogue
3,5mm jack
Output Control
LAN 100Mbit
Remote Control
LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input

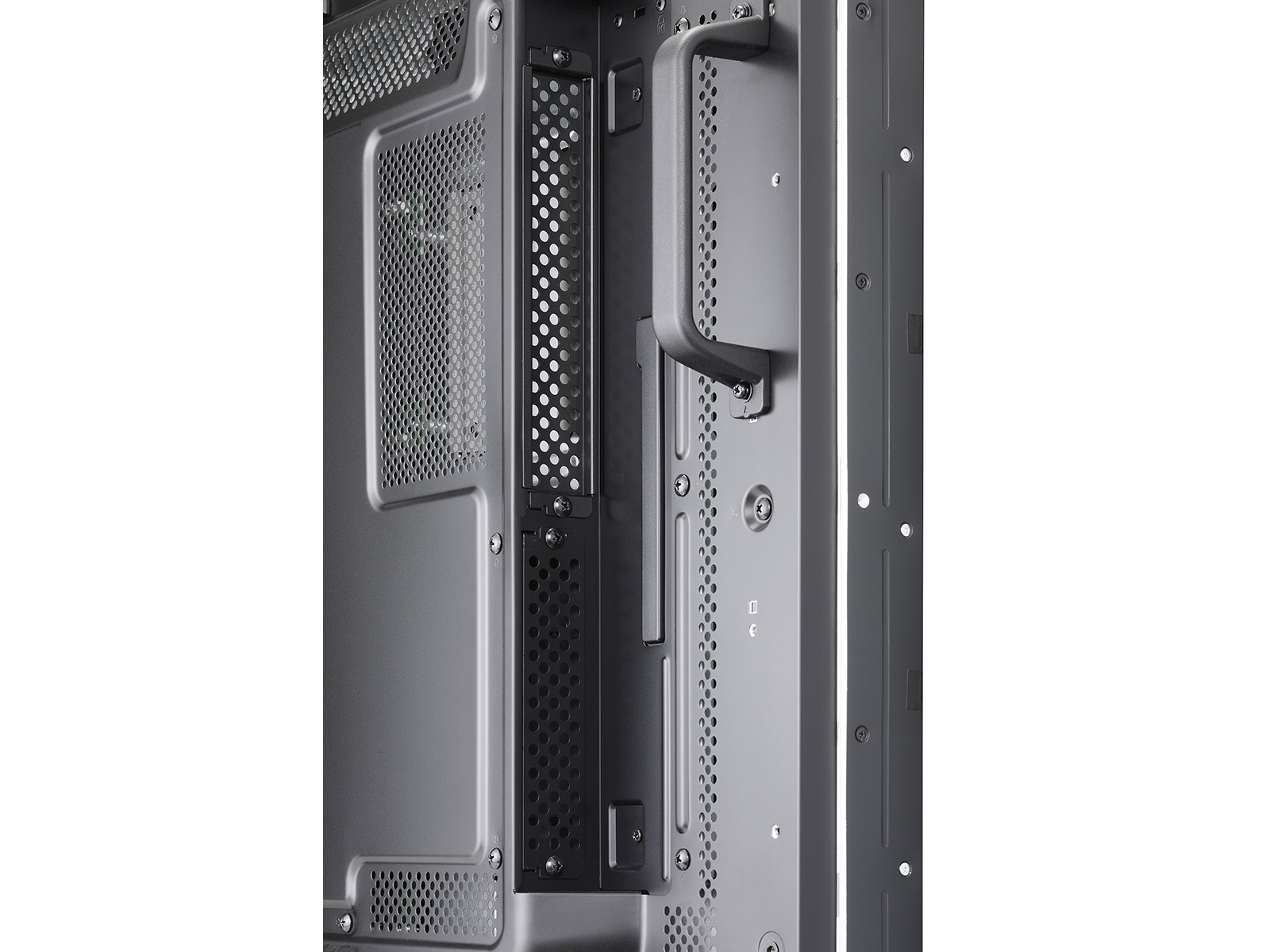

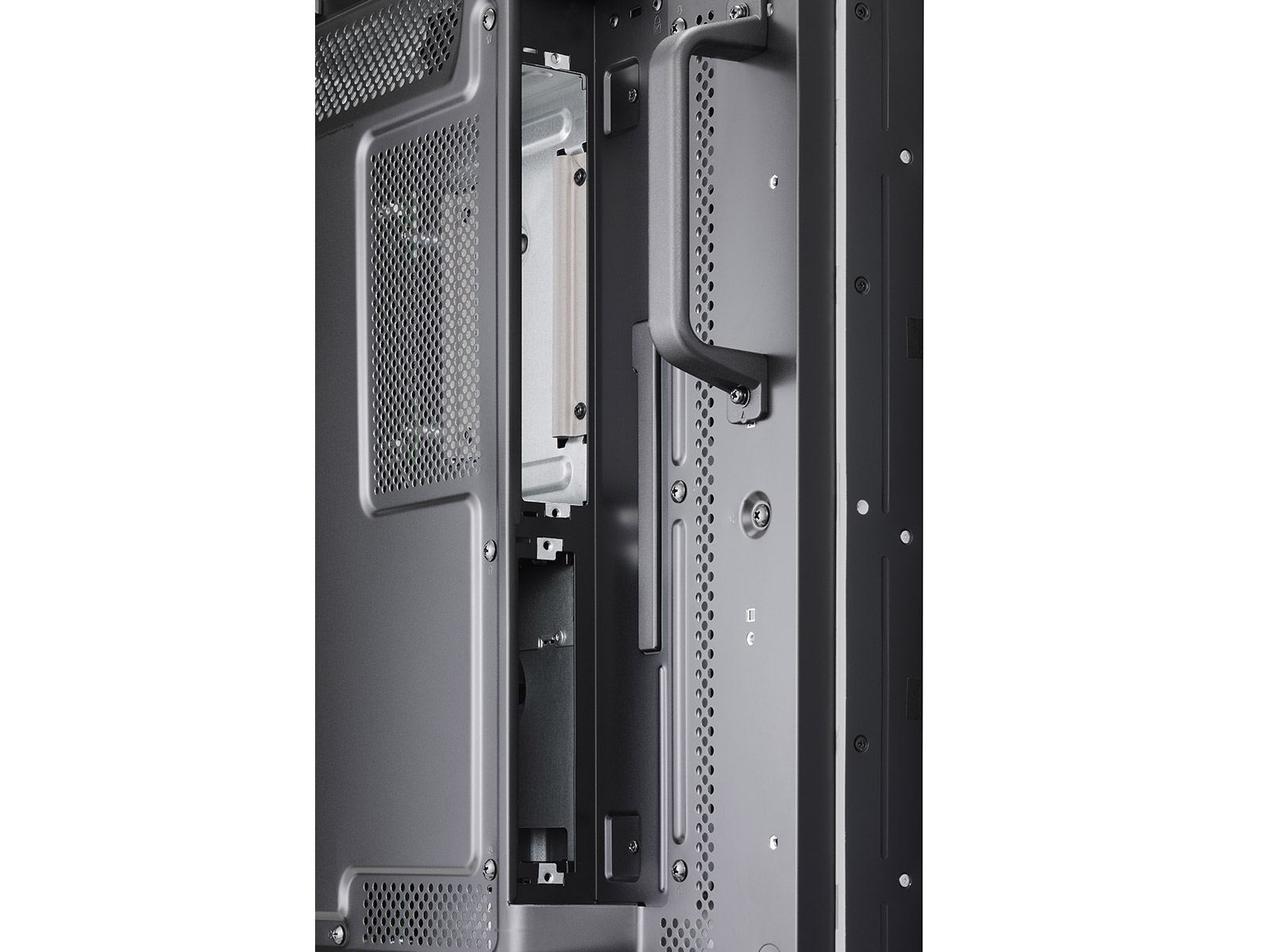

Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
Inrush Current [A]
max. 10
Power Consumption [W]
max. 61
Voltage / Current [V/A]
16/4
Interface Extension Slot
Slot Technology
analogue and digital interface extension (NEC standard)
Sensors
Ambient Light Sensor
Integrated, triggered actions programmable
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
NFC Sensor
Integrated, 2cm range, free NEC Android App required
Electrical
Power Consumption [W]
93 Eco (shipment setting), 115
Power Savings Mode [W]
< 0.5 (ECO Standby); < 1
Power Management
VESA DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,024 x 578 x 117
Weight [kg]
Without stand: 24.3

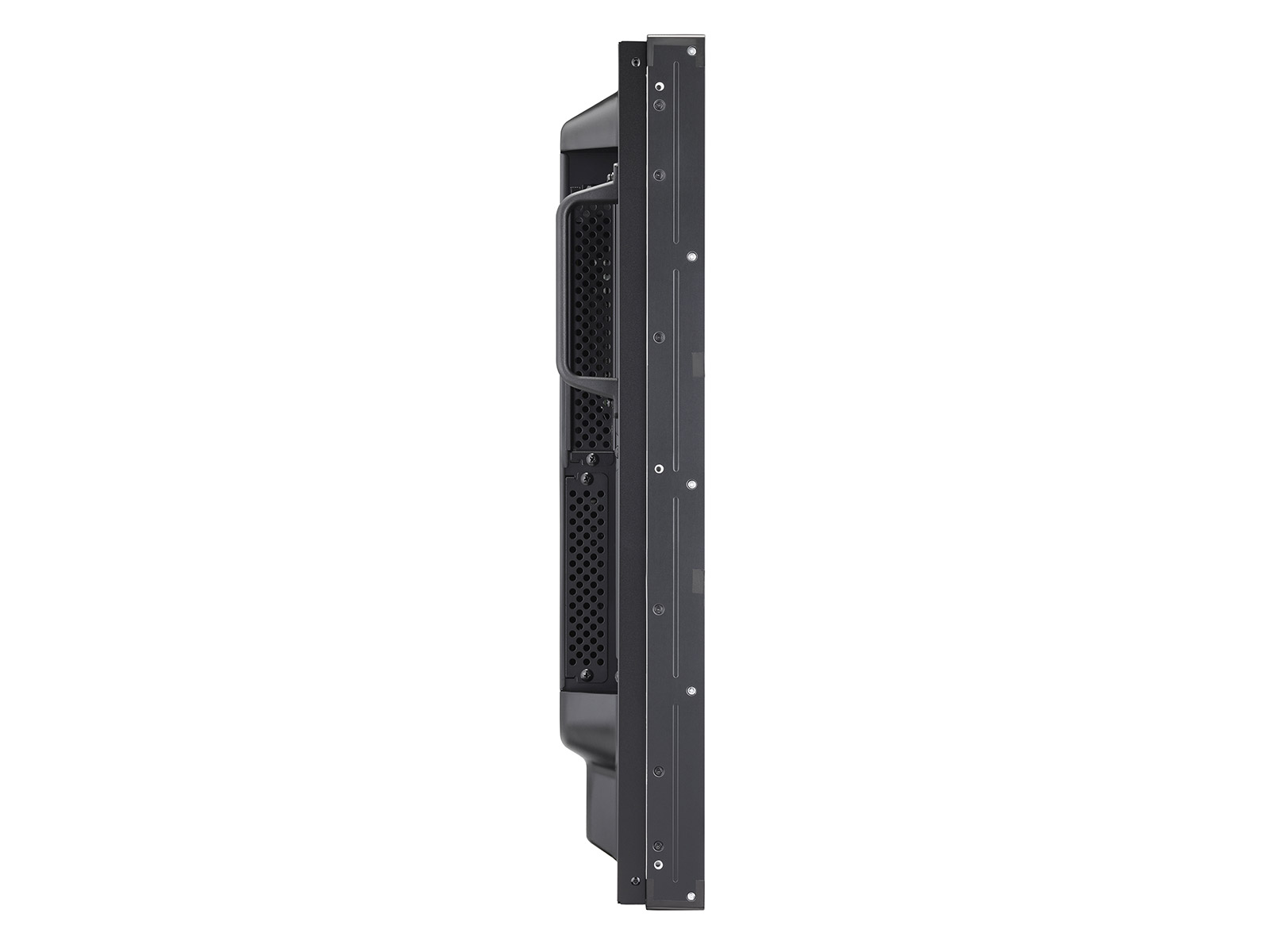

Bezel Width [mm]
1.8 bottom/right; 3.8 top/left; 5.6; Content to content 5.8
VESA Mounting [mm]
300 x 300 (FDMI); 4 holes; M6
Ingress Protection
IP40 (front); IP20 (back)
Available Options
Accessories
Calibration kit (KT-LFD-CC); Feet (ST-322); Overframe kit (KT-46UN-OF3); Remote control kit (KT-RC, KT-RC2); Speaker (SP-RM1 ); Trolley (PDVWM 2x2 46 55 L, PDVWM 3x3 46 55 L); Wall mount (PD02VWXUN 46L/P, PD02VW MFS 46 55 L/P, easyFrame02 X46UN)
Interface Extension
SB3-AB1 analogue: Audio; Component; Composite; S-Video
SB3-AB2 analogue: Audio; RGBHV
SB3-AB2 analogue: Audio; RGBHV
OPS Slot
HD-SDI 1.5G / 3G; HDBaseT receiver; Intel® Atom, Celeron and Core i3, i5, i7 Slot-in PCs; OPS Digital Signage Player
Regulatory
Safety and Ergonomics
C-tick; CE; Energy Star 6.0; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Green Features
Energy Efficiency
Ambient light sensor; Annual energy consumption: 136 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: B; Human sensor
Additional Features
Special Characteristics
Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM Simulation; Frame Comp; HTTP Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2 - free download; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; Super slim bezel with 5.7 mm between contents and 5.5 mm bezel width; TileMatrix; User readable log function
Colour Versions
Black Front Bezel, Black Back Cabinet
Audio
Optional Speakers (15 W + 15 W)
Shipping Content
CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Free LAN control software (download); Power Cable
Signal Cable: LAN cable
Signal Cable: LAN cable
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours
24/7
1 adjusted usage conditions for face up/down installations, please refer to operational guidelines or contact our support
2 please refer to terms and conditions of warranty extensions
