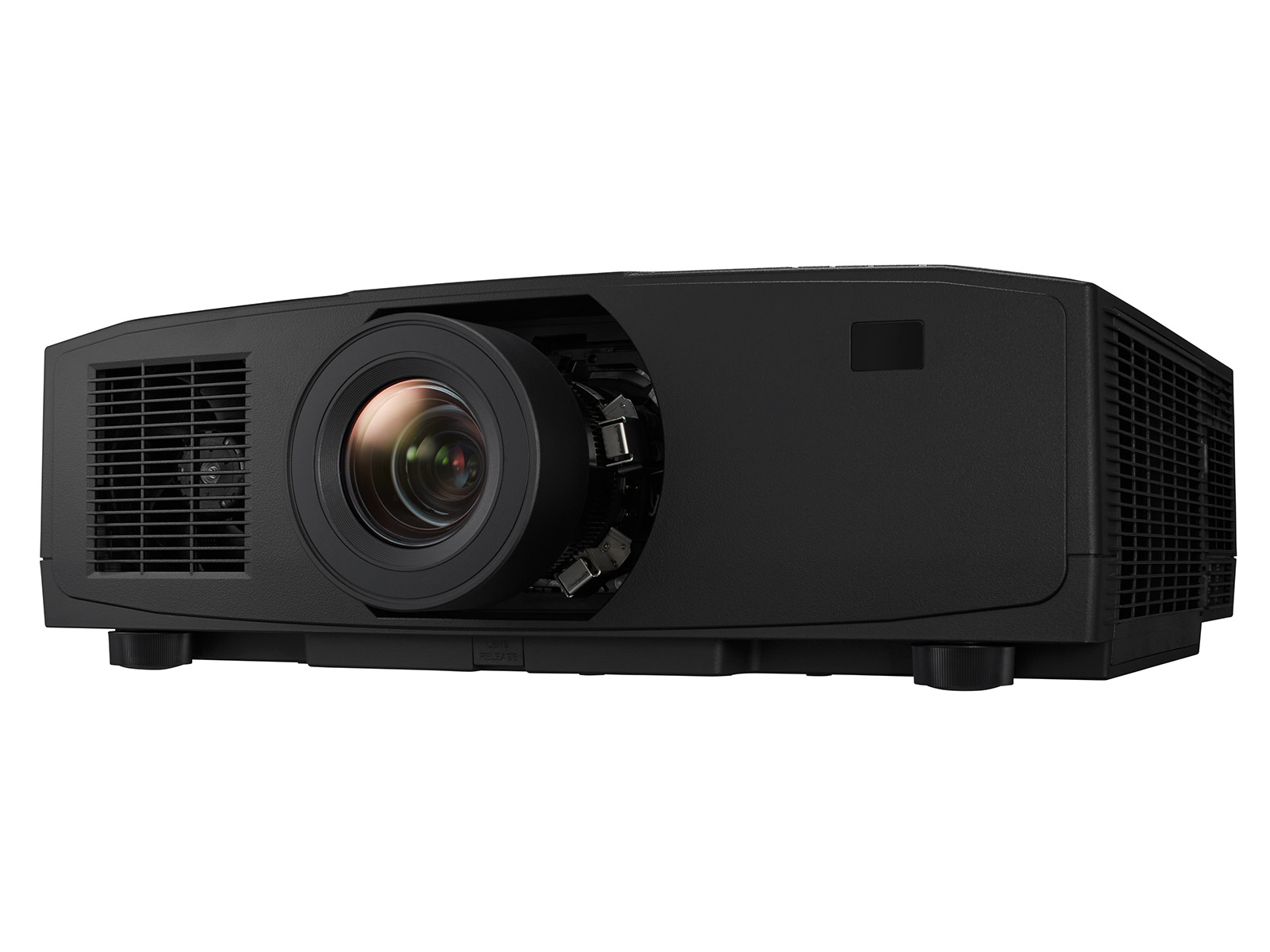

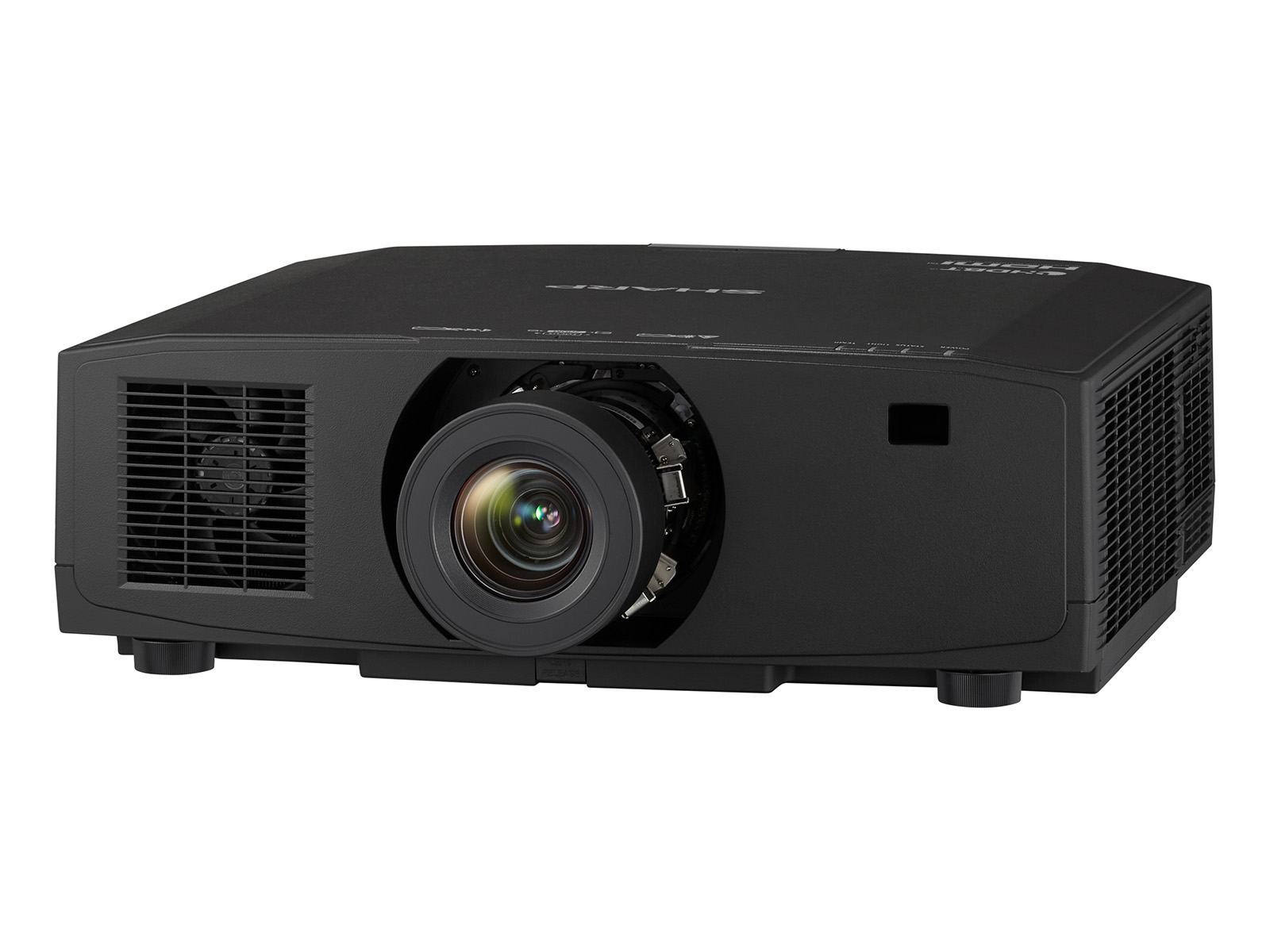

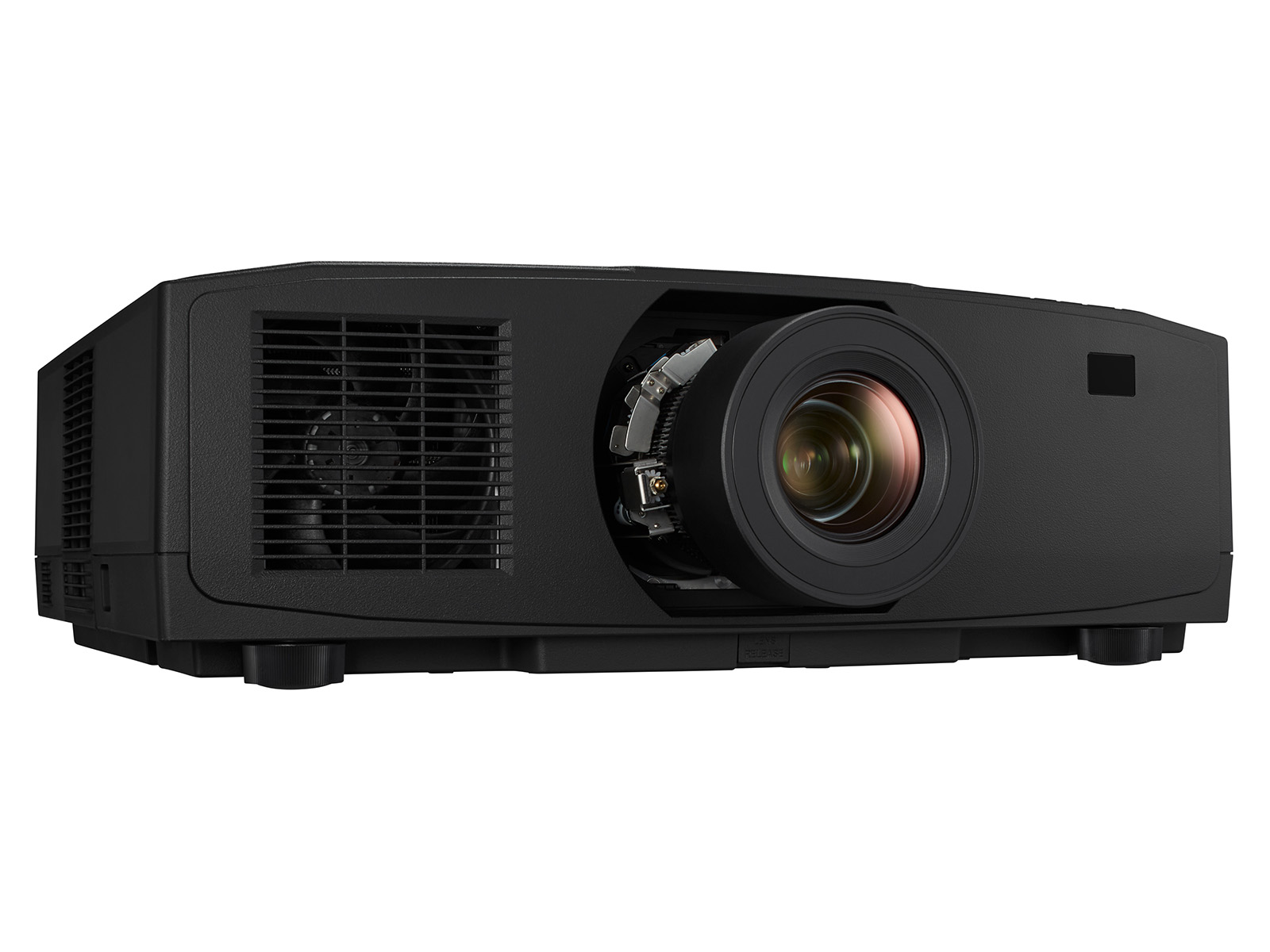

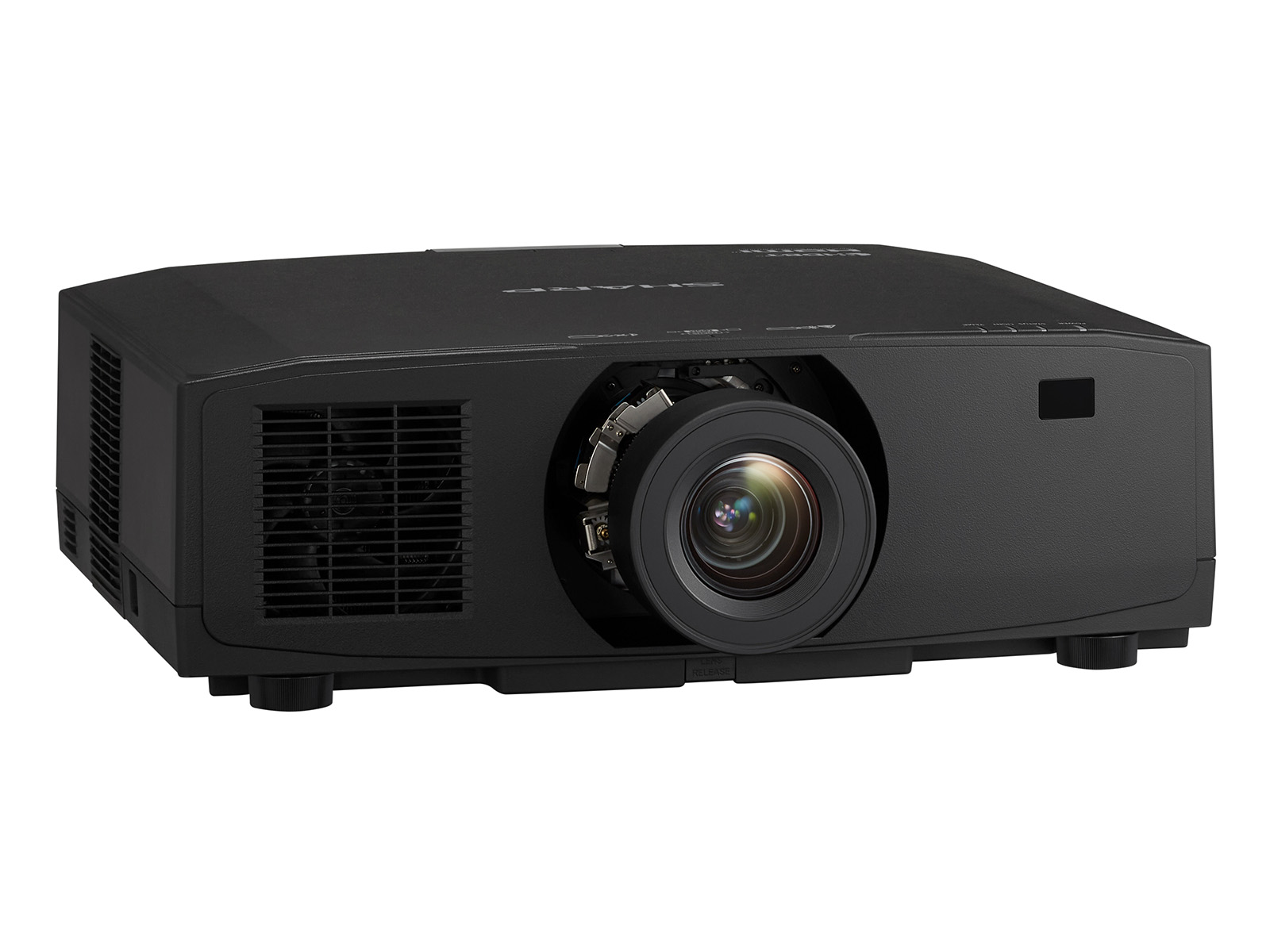

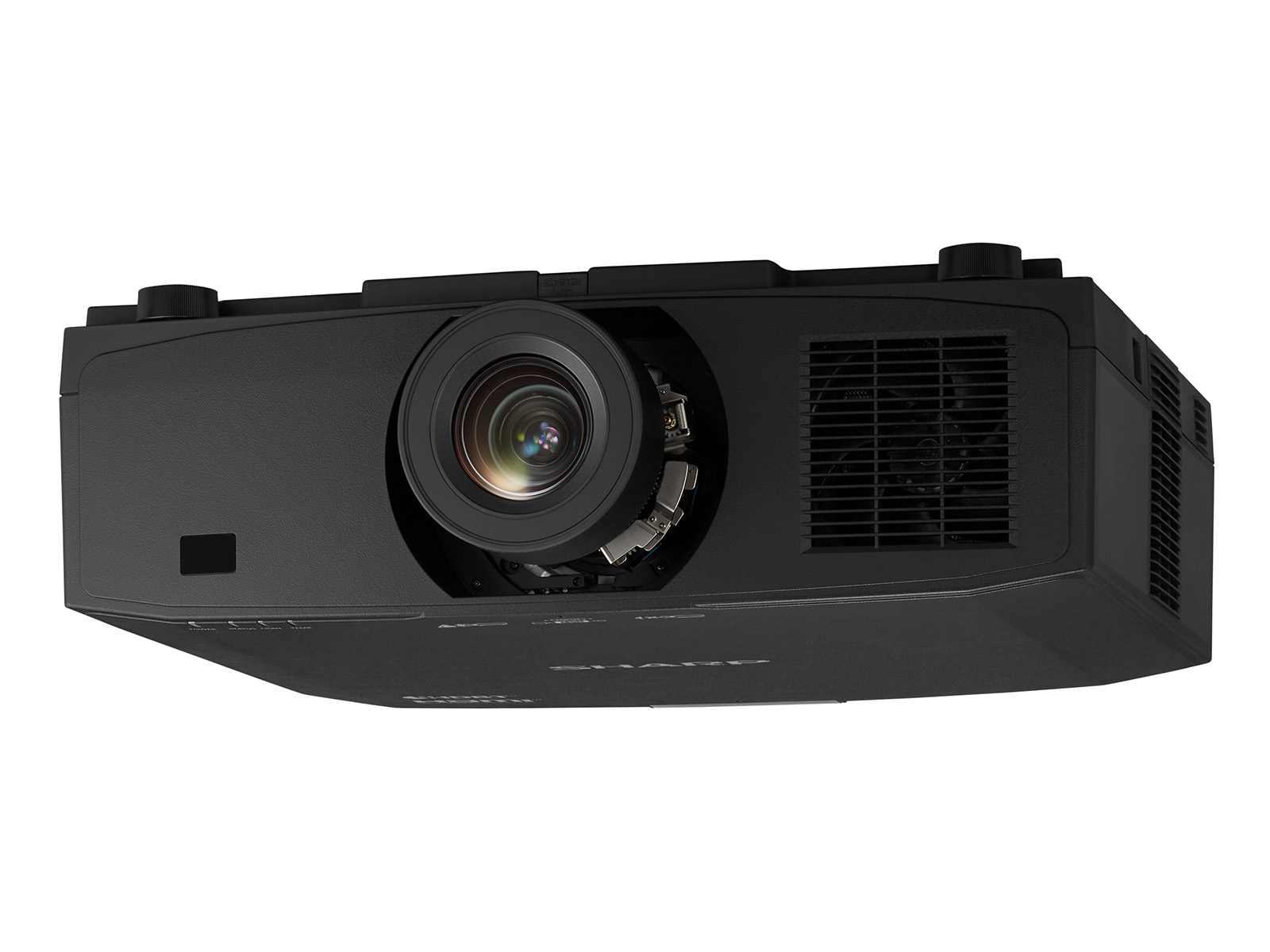

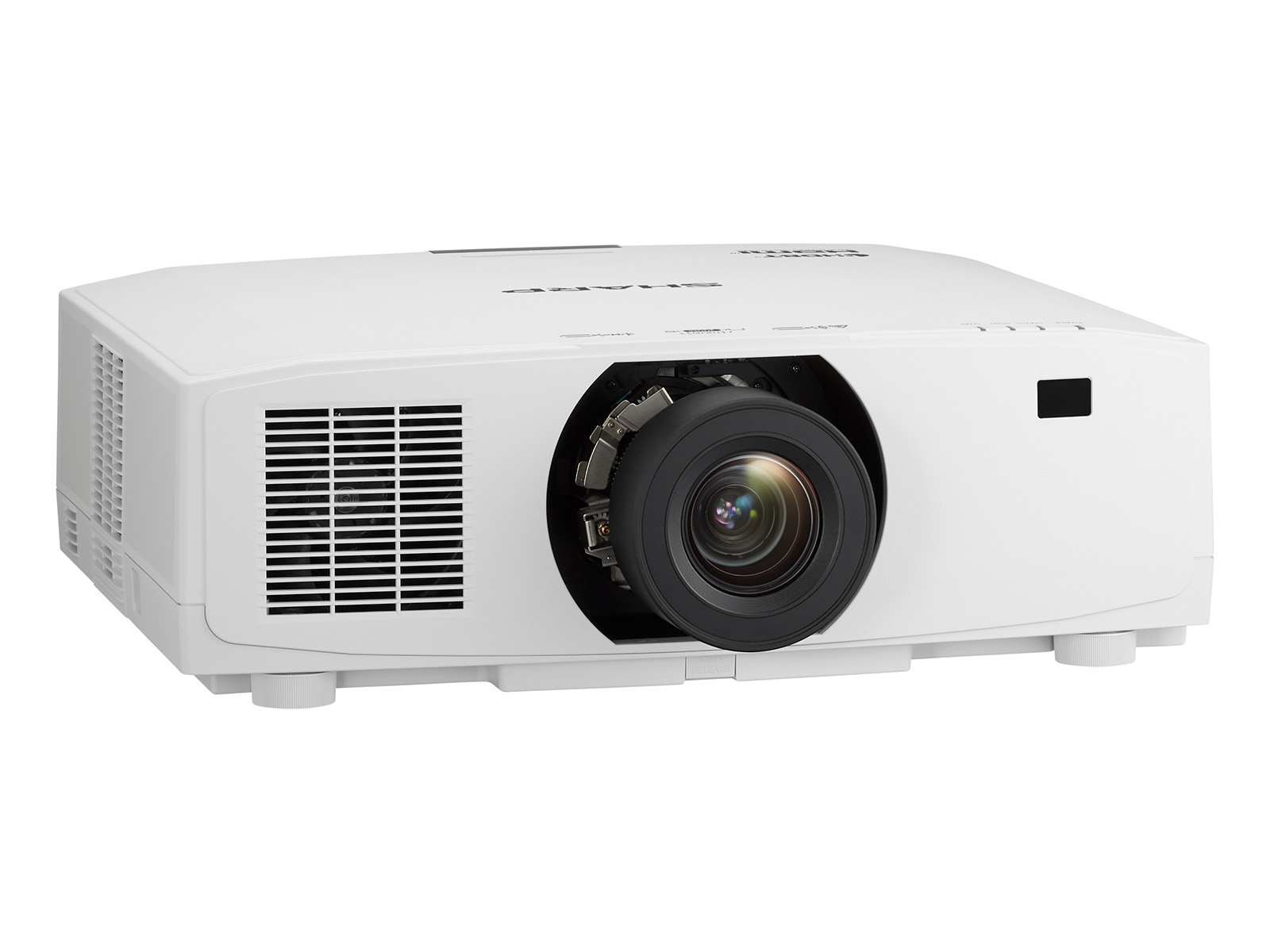

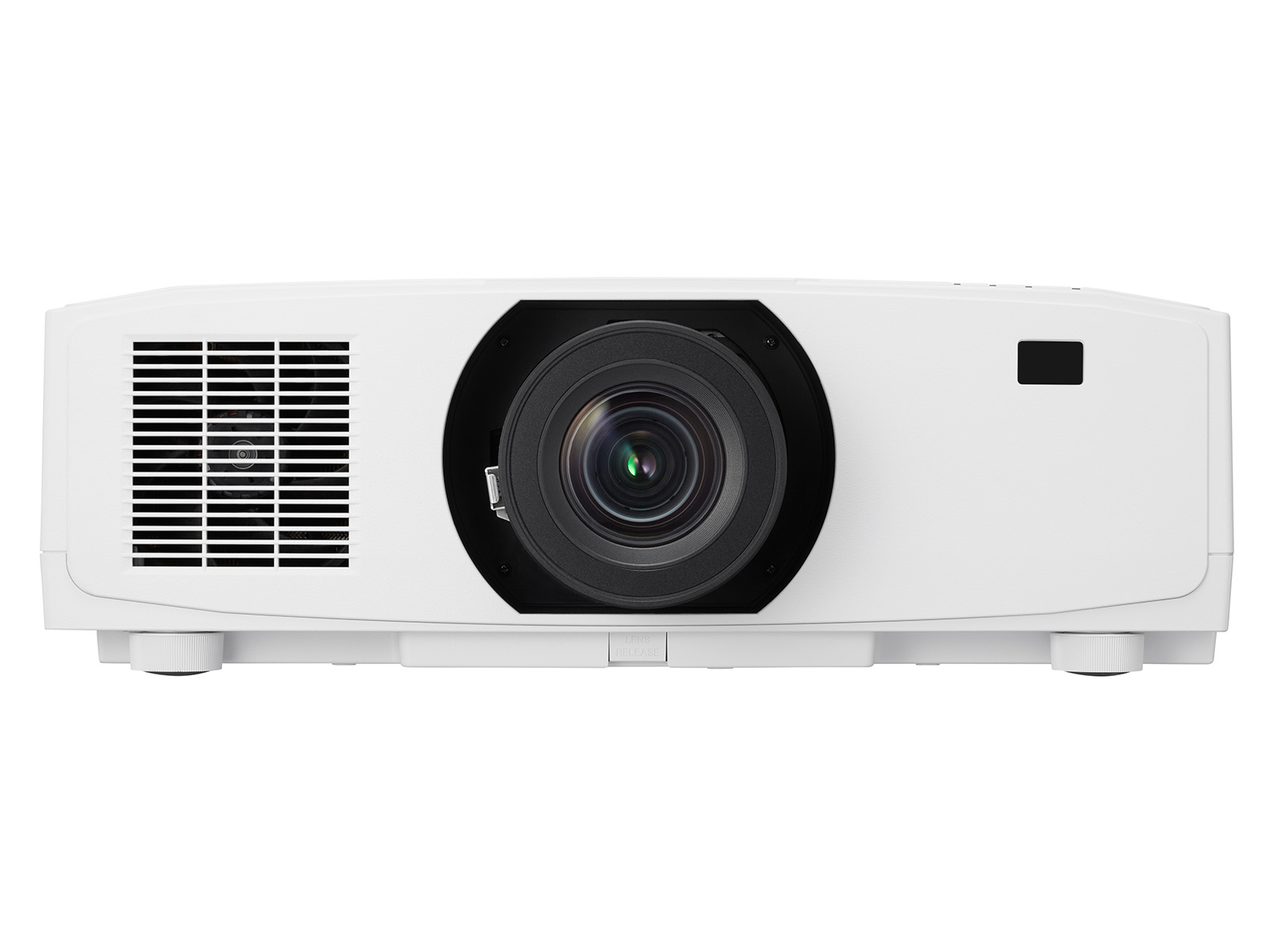

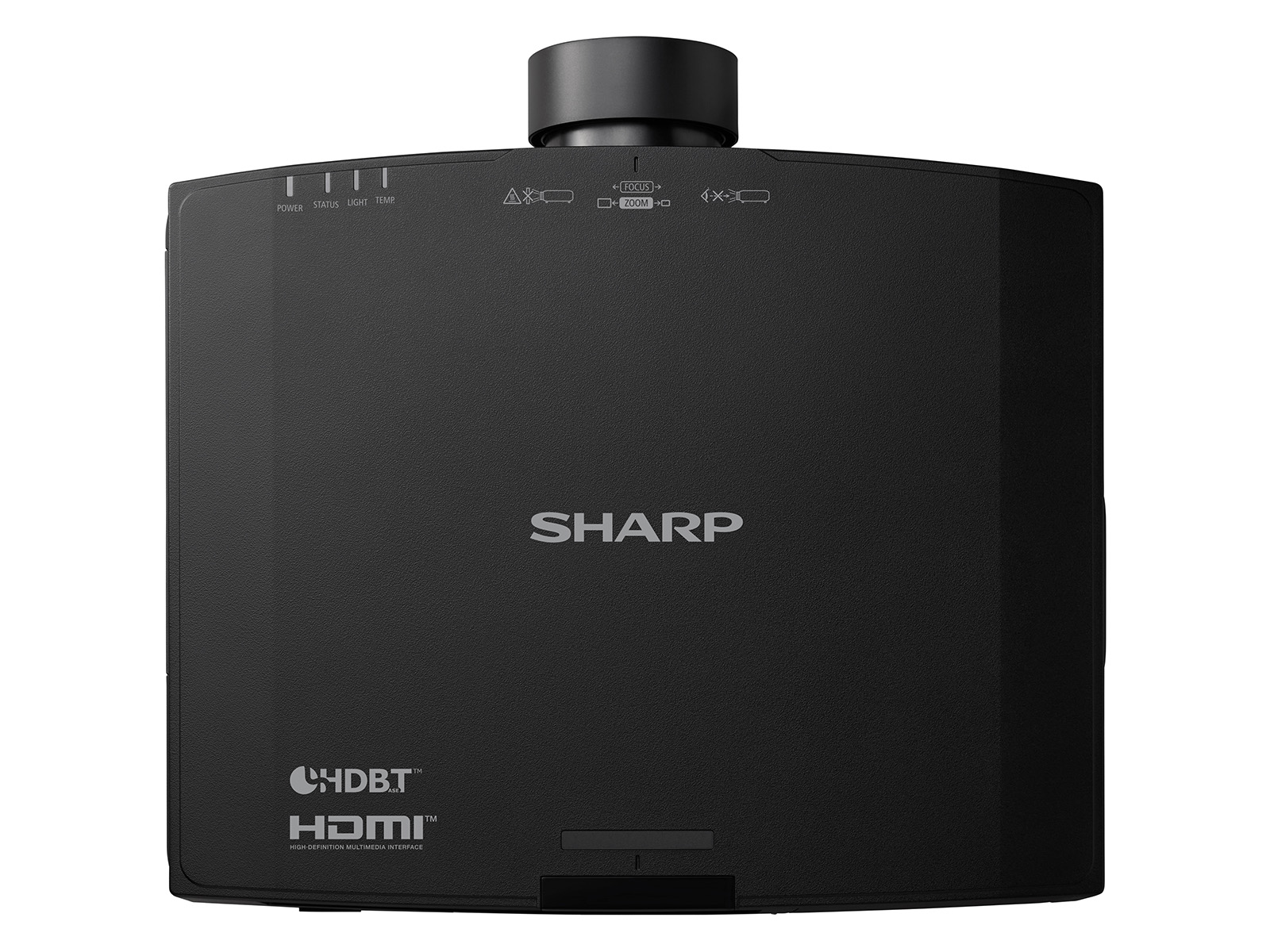

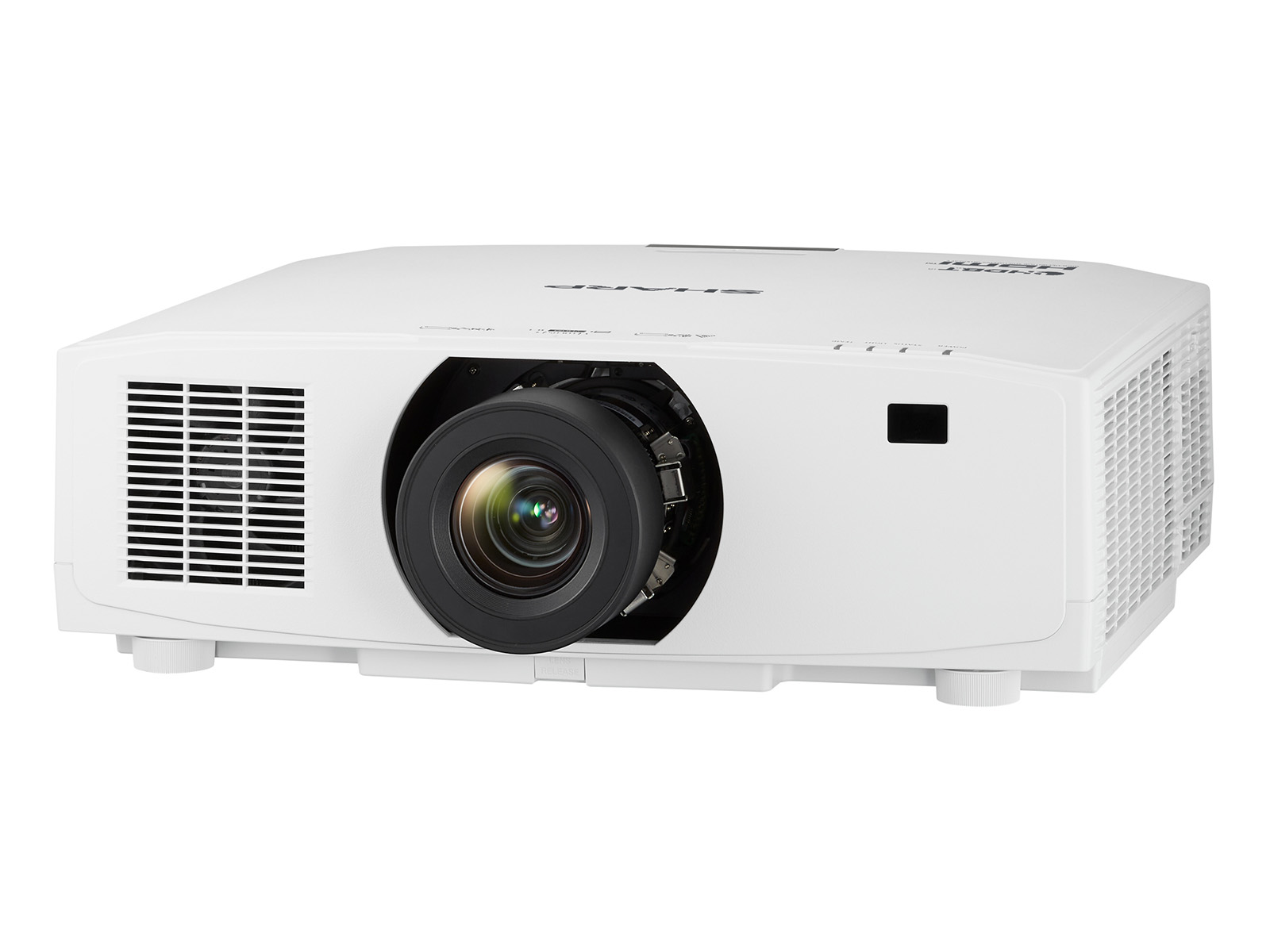

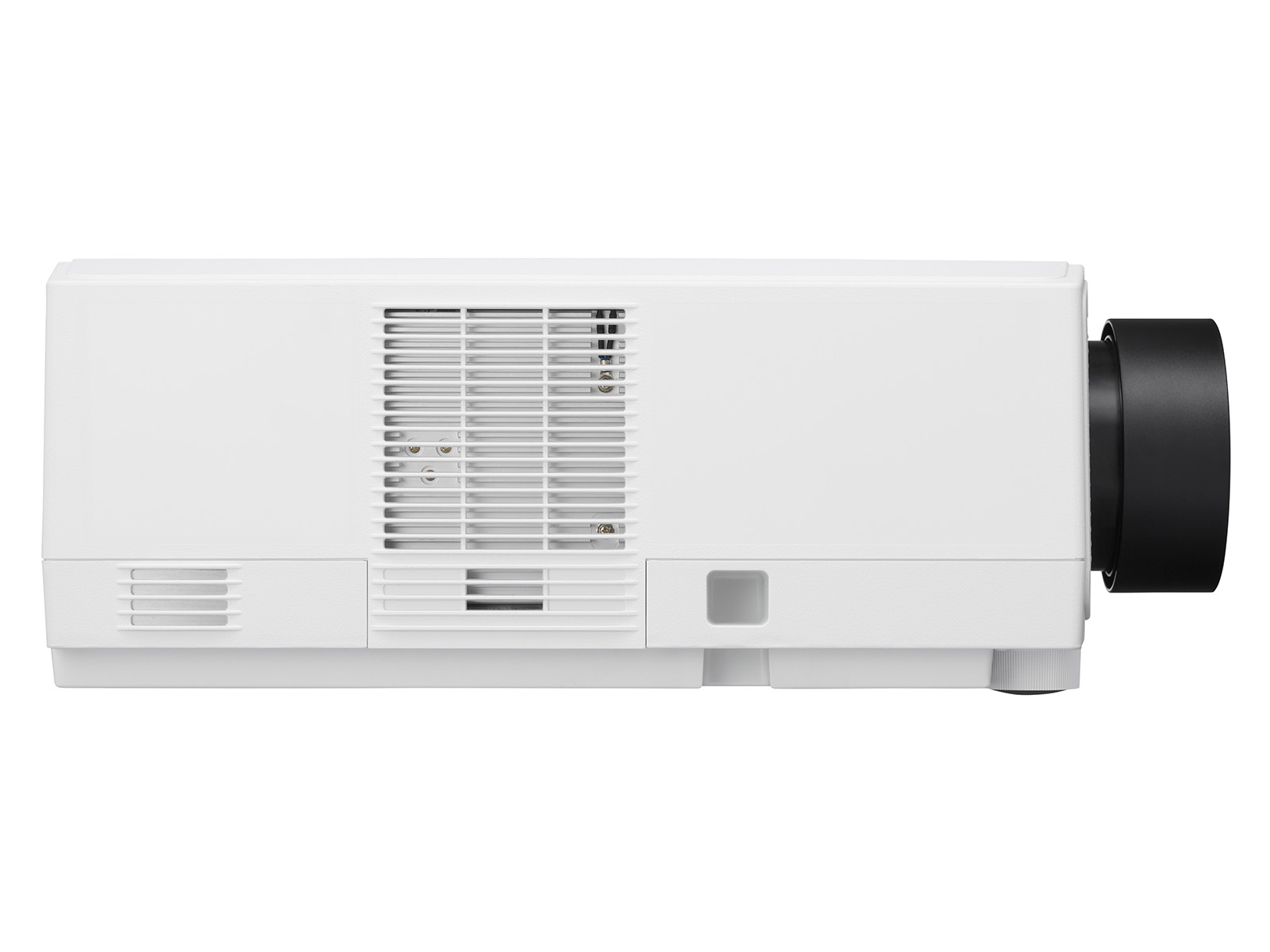

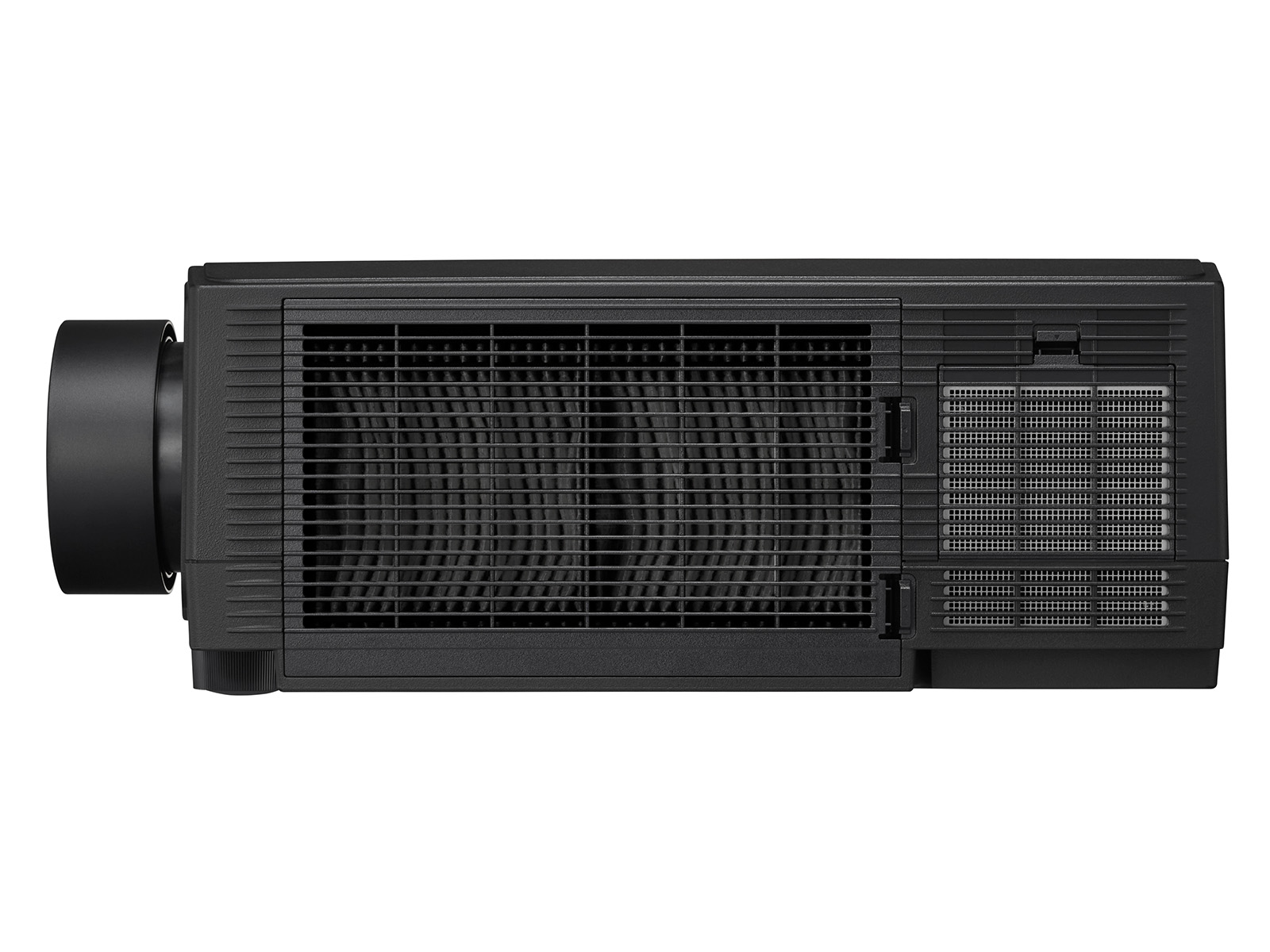

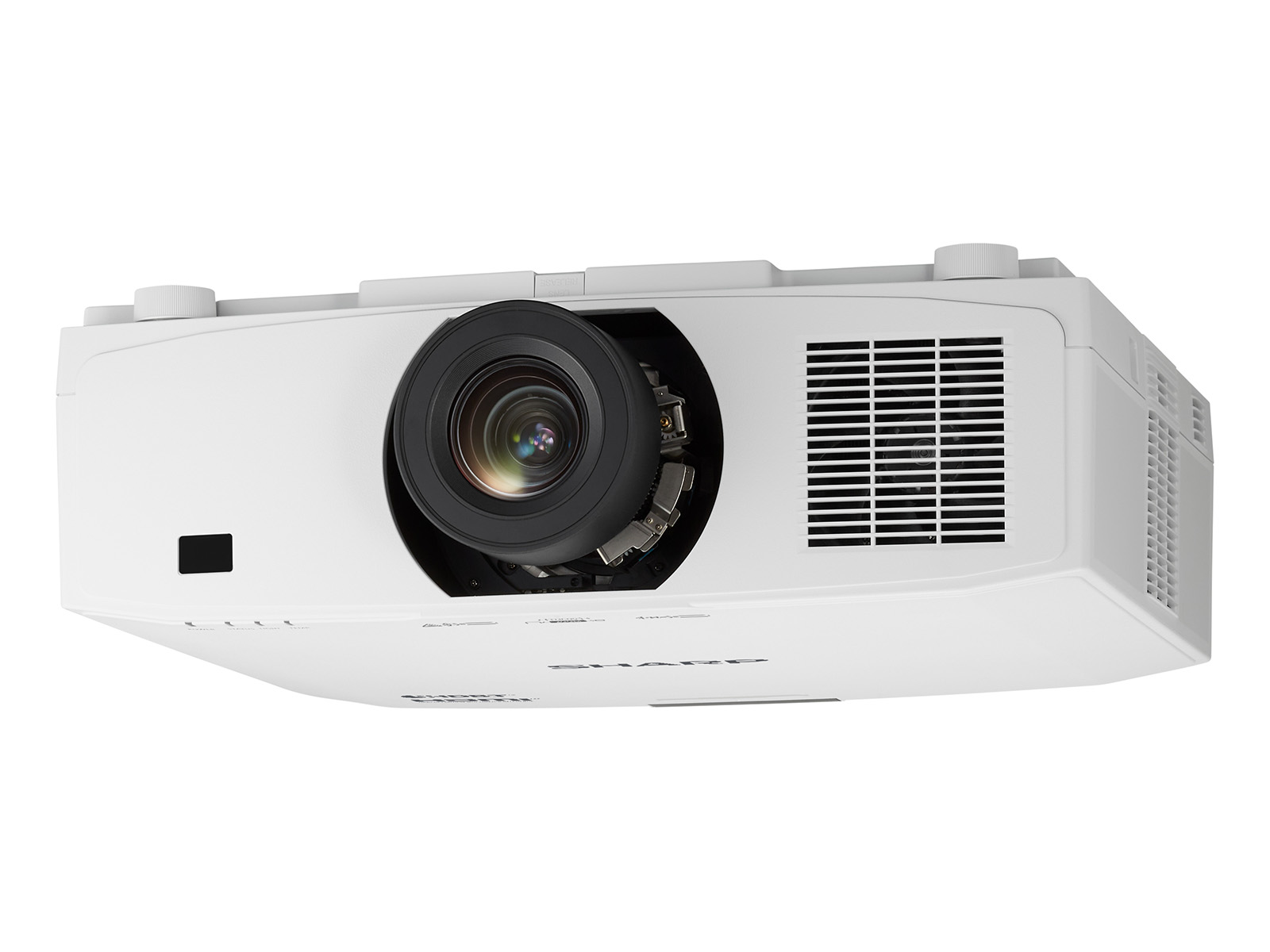

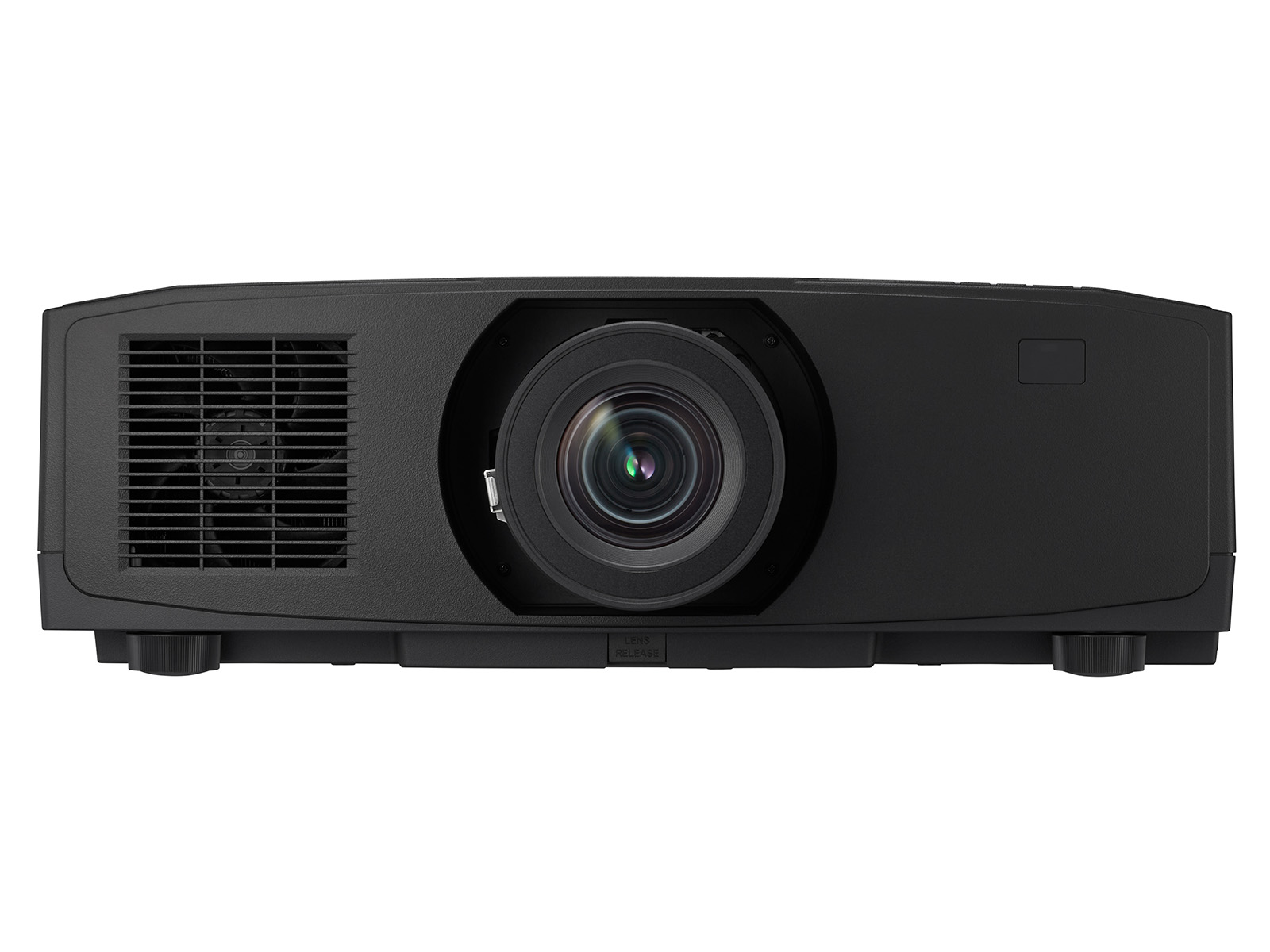

Sharp V801U
Versatile, Value-driven Performance
A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments.
Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing next-generation efficiencies.
Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.
Projection Technology
3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio
16:10
Contrast Ratio
3000000:1
Brightness
8000 Lm Normal / 8300 Lm Center / 7200 Lm Silent Mode; compliant with ISO21118-2012
Lamp
Laser Light Source
Light Source Life [hrs]
20000 1
Lens
5 motorized lens options
Lense Adjustment
Motorized
Lens shift
H:±20, V:+50,-10
Keystone correction
+/- 30° manual horizontal / +/- 30° manual vertical
Projection Factor
depending on lens selection (std. option XP-41ZL at 1.3-3.02:1)
Projection Distance [m]
0.7 – 50.9
Screen Size (diagonal) [cm] / [inch]
Maximum: 1,270 / 500"; Minimum: 101.6 / 40"
Zoom
Motorized and manual (depending on lens)
Focus Adjustment
Motorized and manual (depending on lens)
Supported Resolutions
1080i/50/60; 1080p/50/60; 1280 x 768 (60); 1920 x 1200 (60); 2560p/1080; 3840 x 2160 (23.8/24/25/29.97/30); 480p/60; 576p/50; 720p/60
Frequency
Digital Frequency: Horizontal: 15/24 - 153 kHz; Vertical: 24-120 Hz

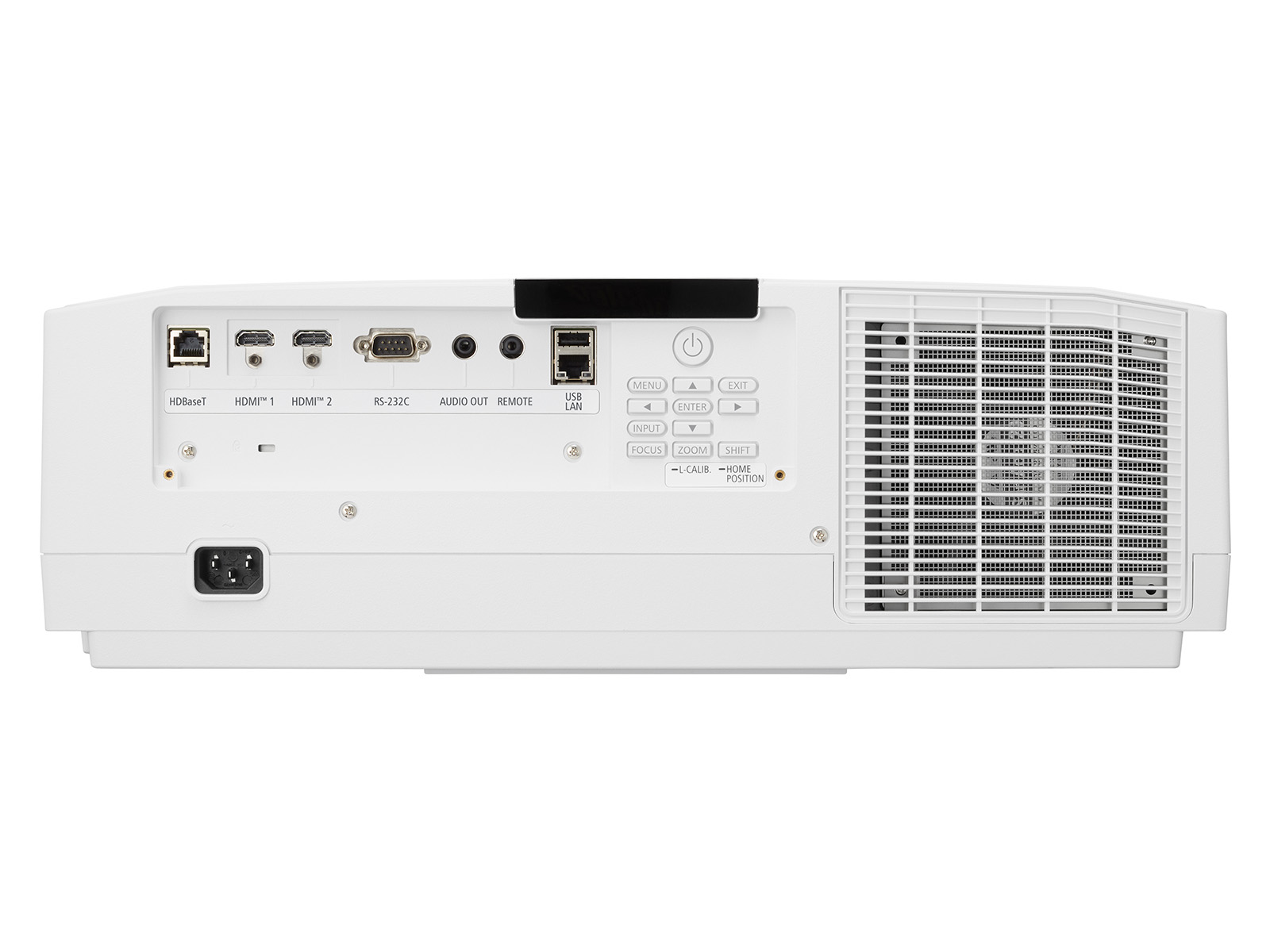

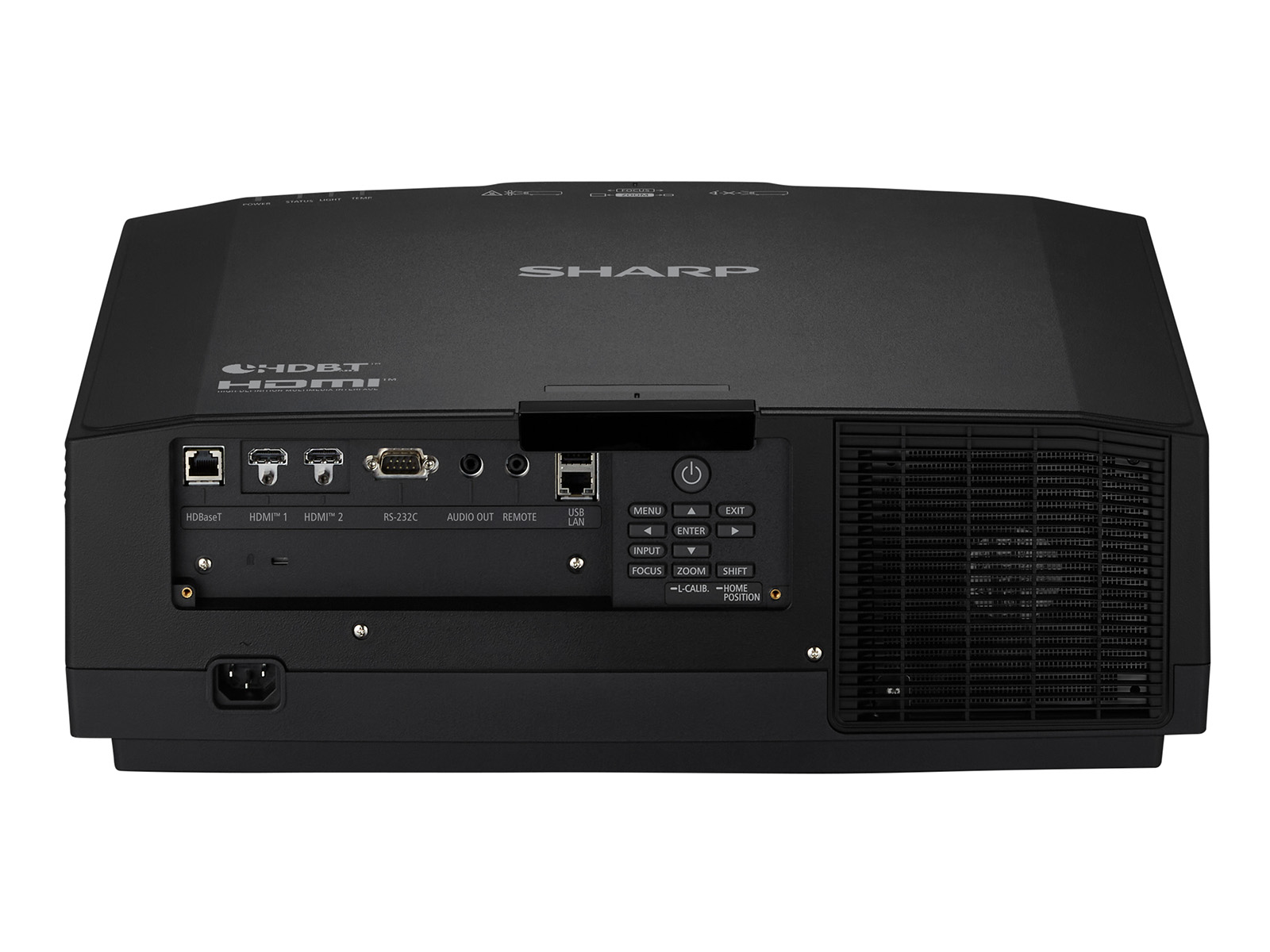

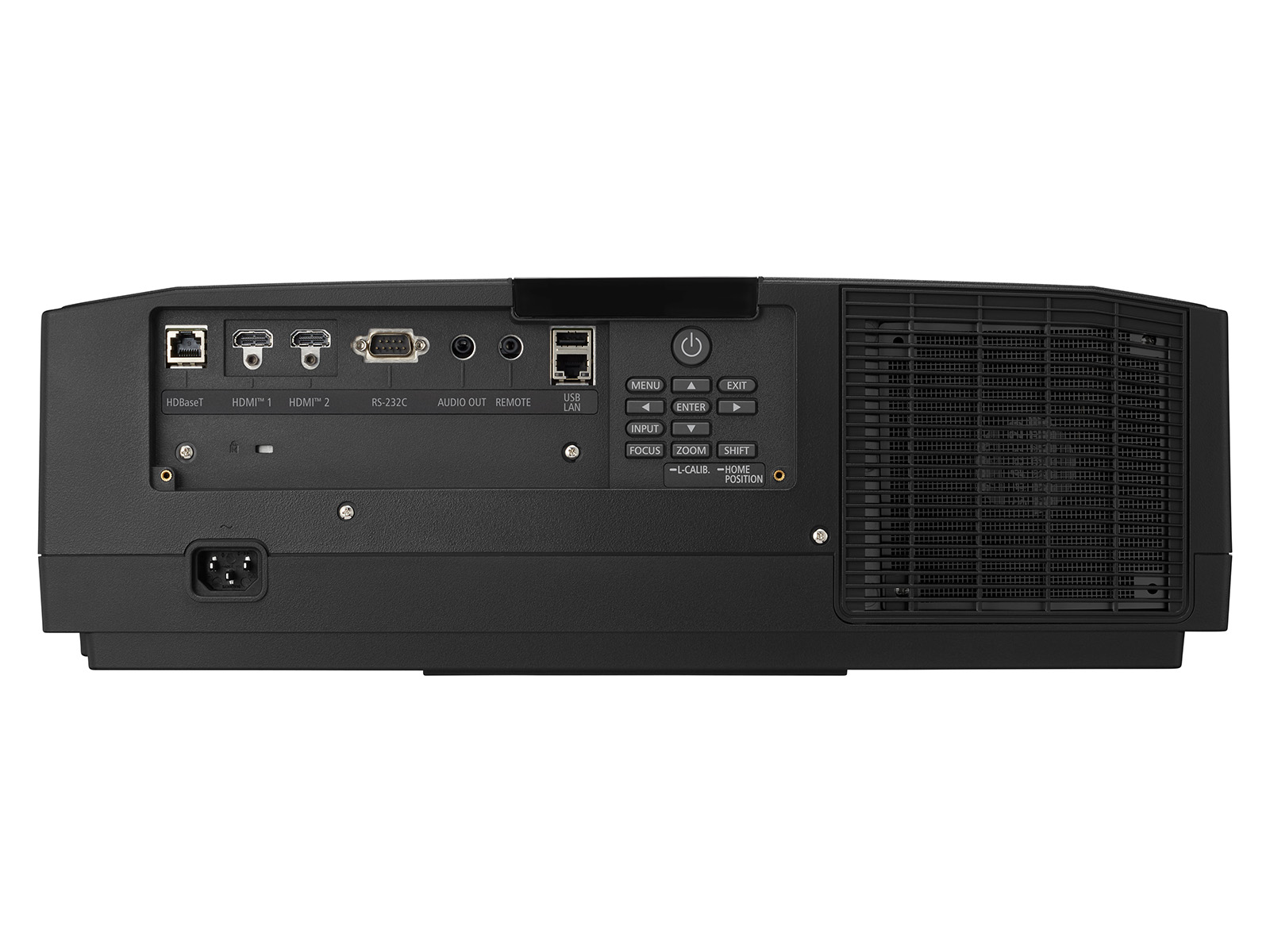

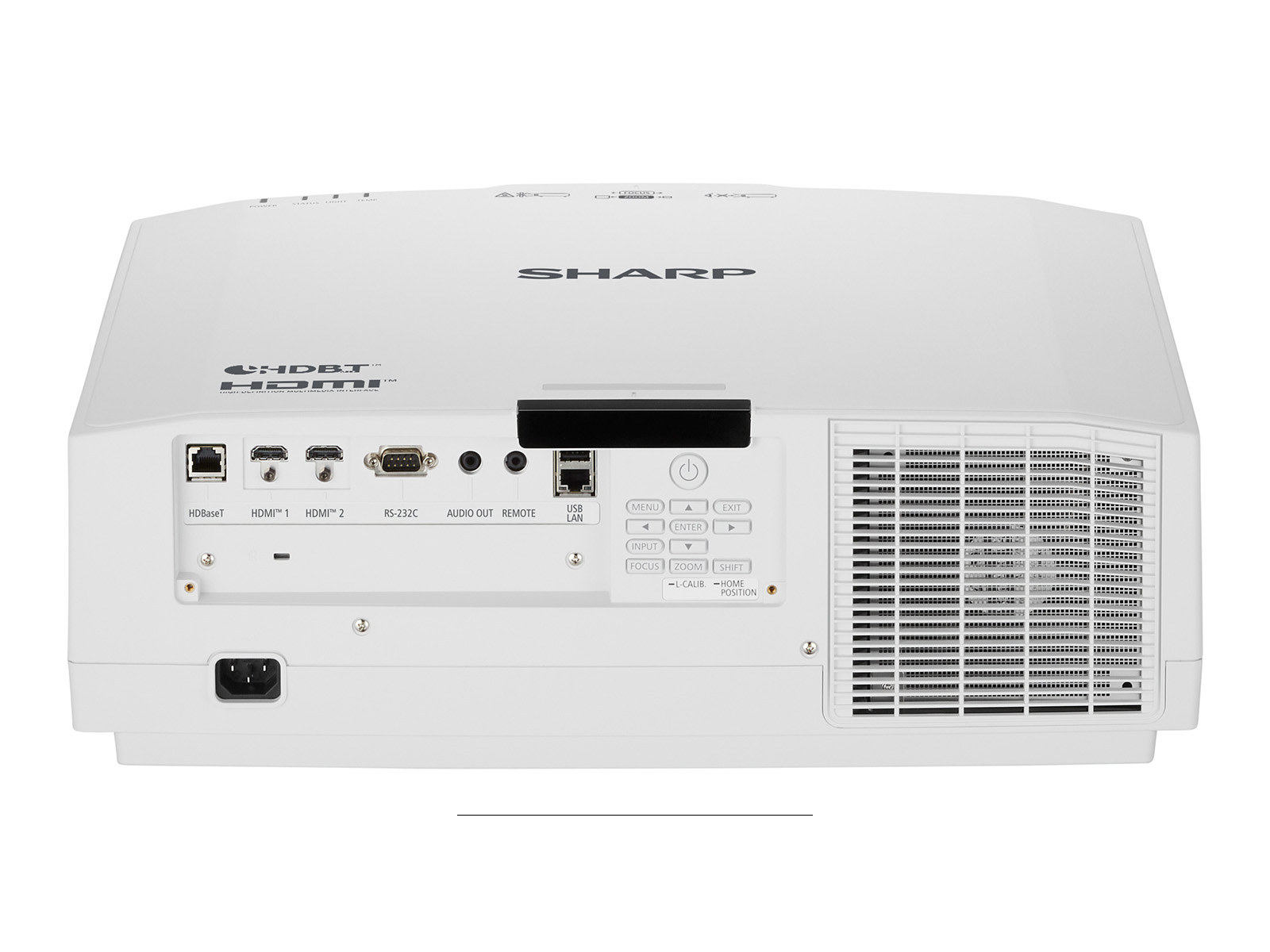

Connectivity
Digital
Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 1.4
Audio
Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
LAN
1 x RJ45
USB
1 x USB A (2A power delivery)
Remote Control
Input:
1 x 3.5 mm Stereo Mini Jack
Remote Control
Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
467.0 Normal / 421.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
Mechanical
Dimensions (W x H x D) [mm]
499 x 164 x 407 (without lens and feet)
Weight [kg]
11.2
Fan Noise [dB (A)]
42 / 32 (Normal / Silent)
Colour Versions

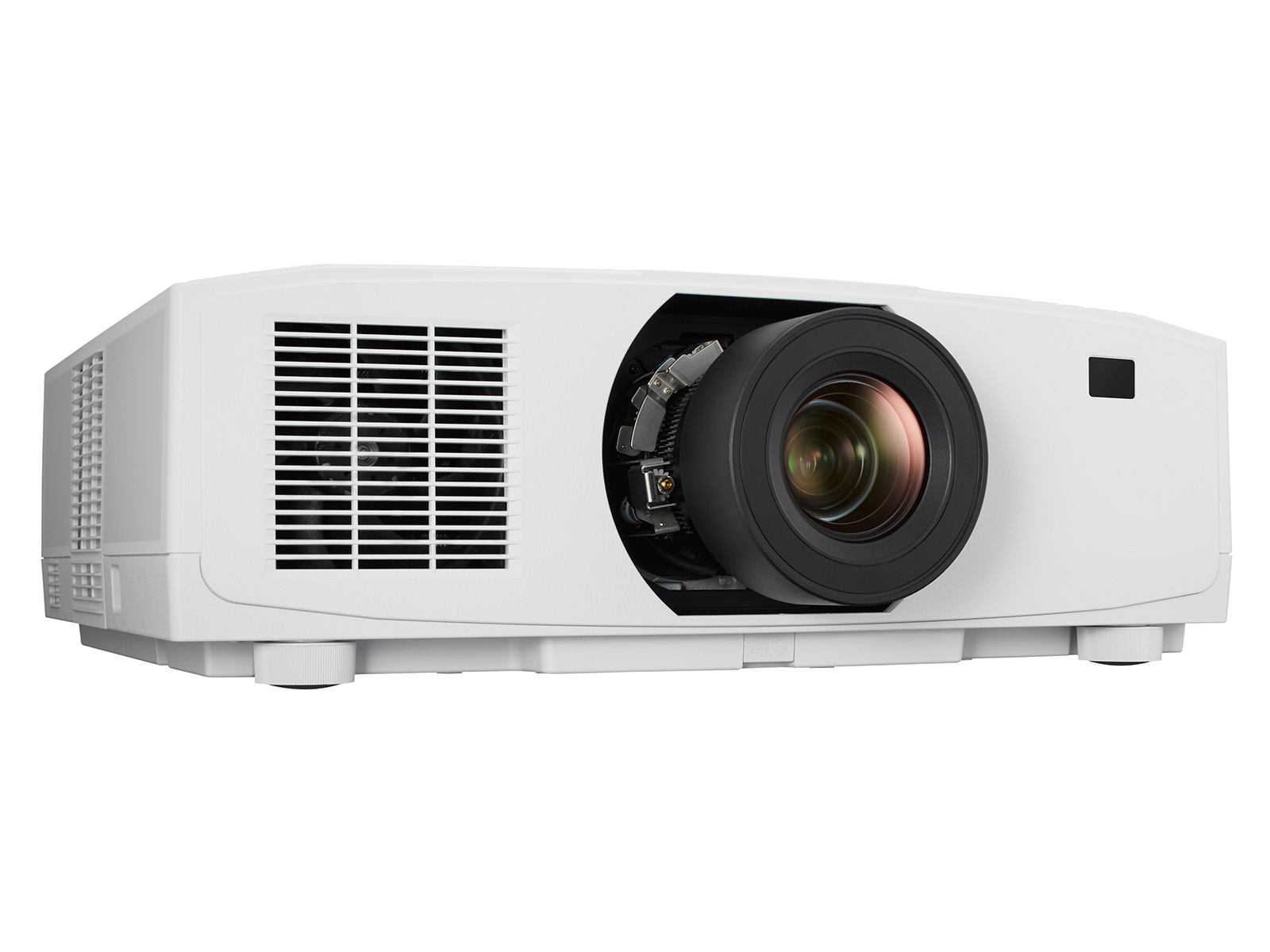

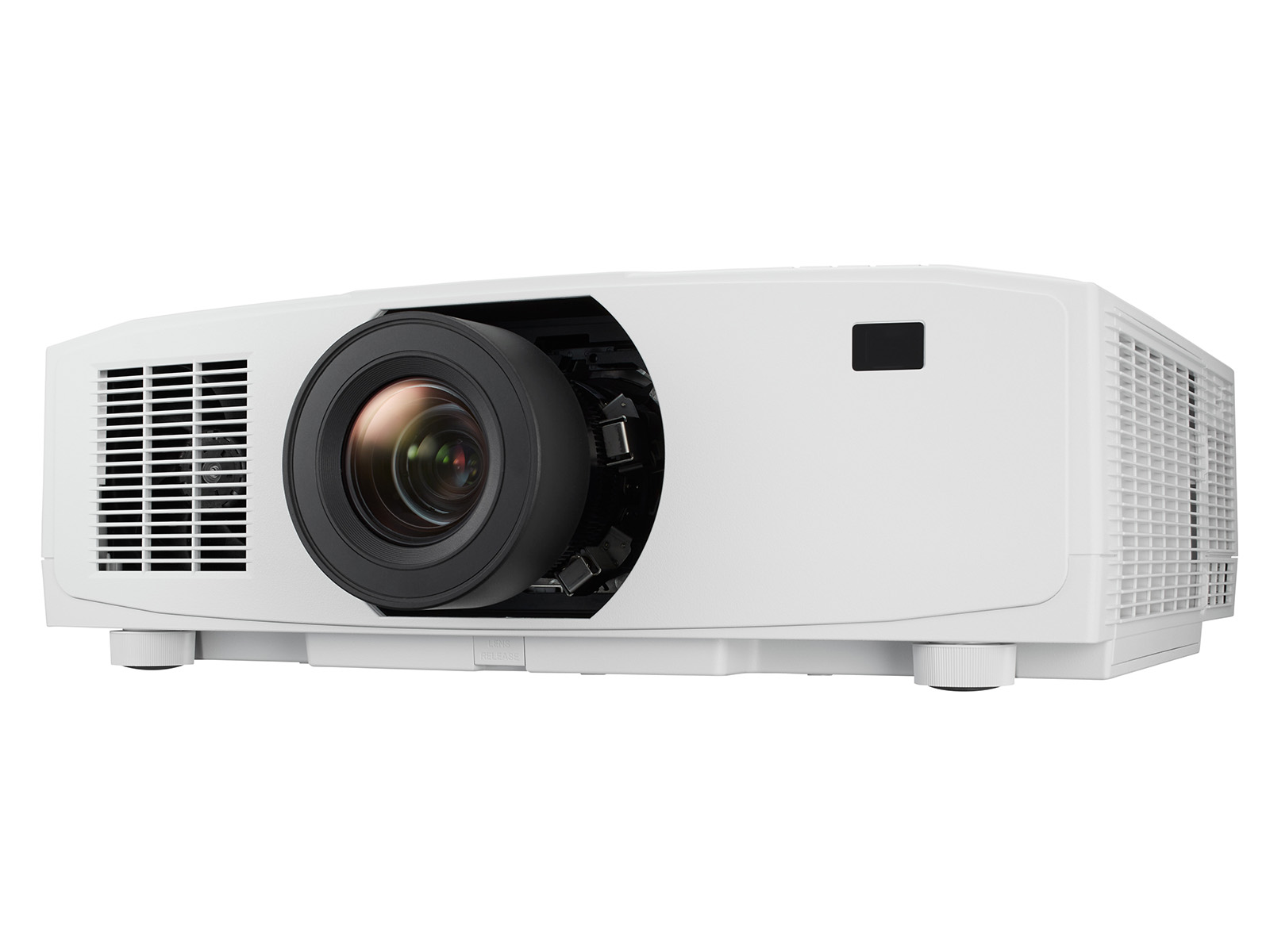

Black; White
Environmental Conditions
Operating Temperature [°C]
0 to 40
Operating Humidity [%]
20 to 80 non-condensing
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80 non-condensing
Ergonomics
Safety and Ergonomics
CE; EAC; ErP; RoHS; TUEV Type Approved
Additional Features
Special Characteristics
AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Control ID Function; Crestron Connected; DICOM simulation; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.2 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; Quick On/Off; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life
Green Features
Energy Efficiency
ECO scheduler; Intelligent power management; Less than 0.3W stand-by power; Longer light source life; Software scheduling; Timer function
Ecological Materials
100% recyclable packaging; Downloadable manuals
Ecological Standards
ErP compliant
Warranty
Projectors
3 years pan-European service
Light Source
3 years or 10000h (whatever comes first)
Shipping Content
Shipping Contents
IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide
Optional Accessories
Optional Accessories

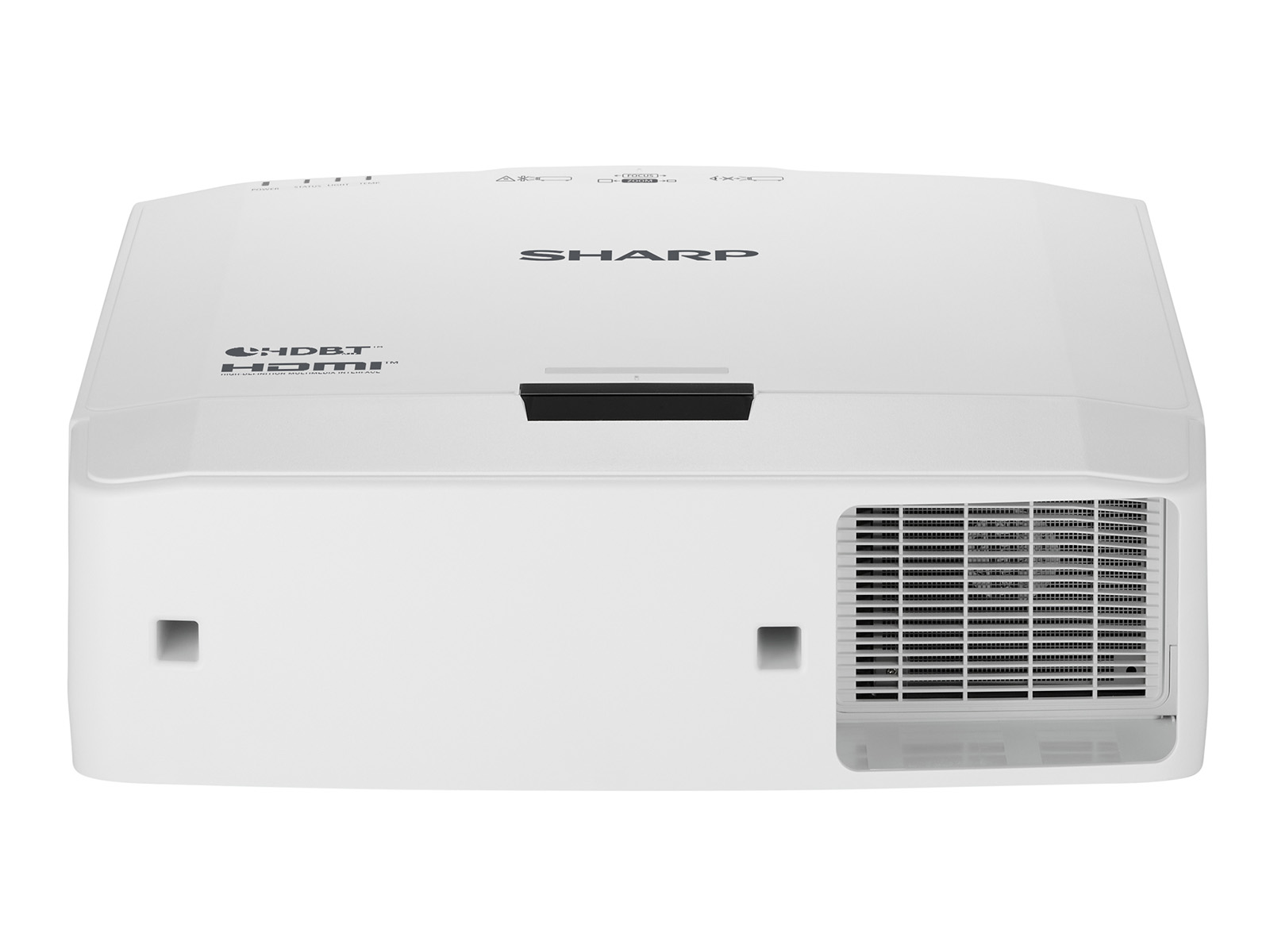

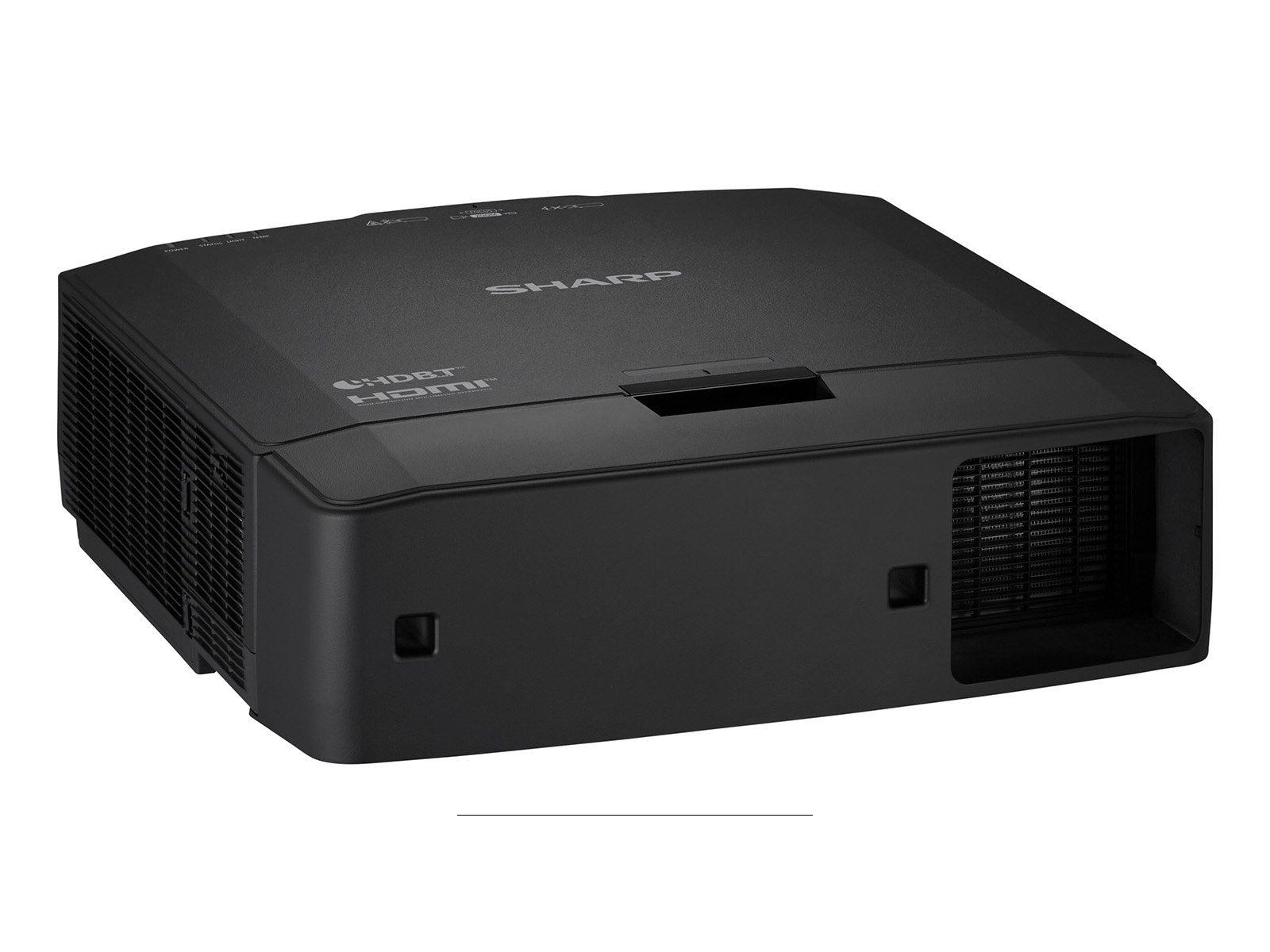

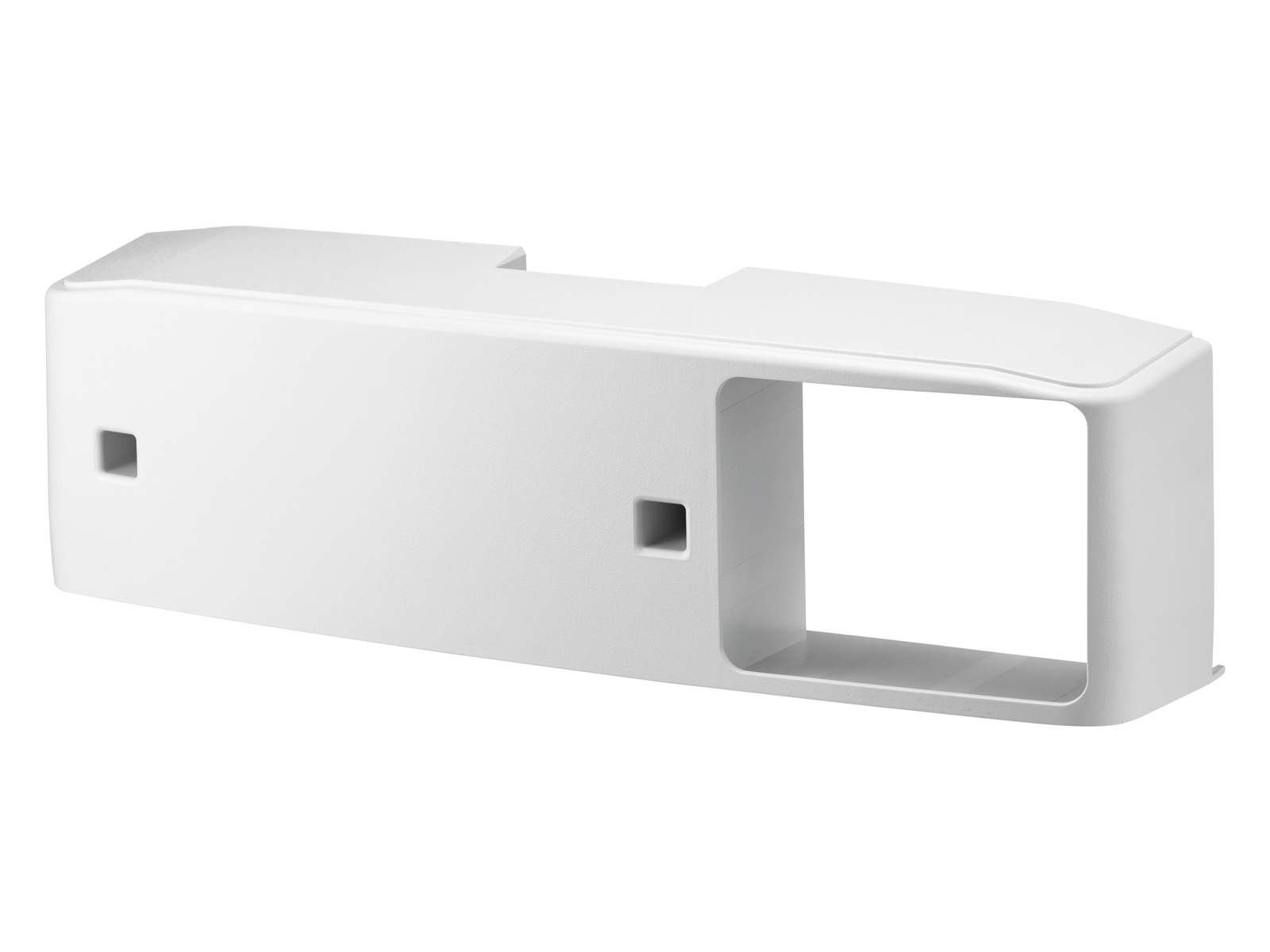

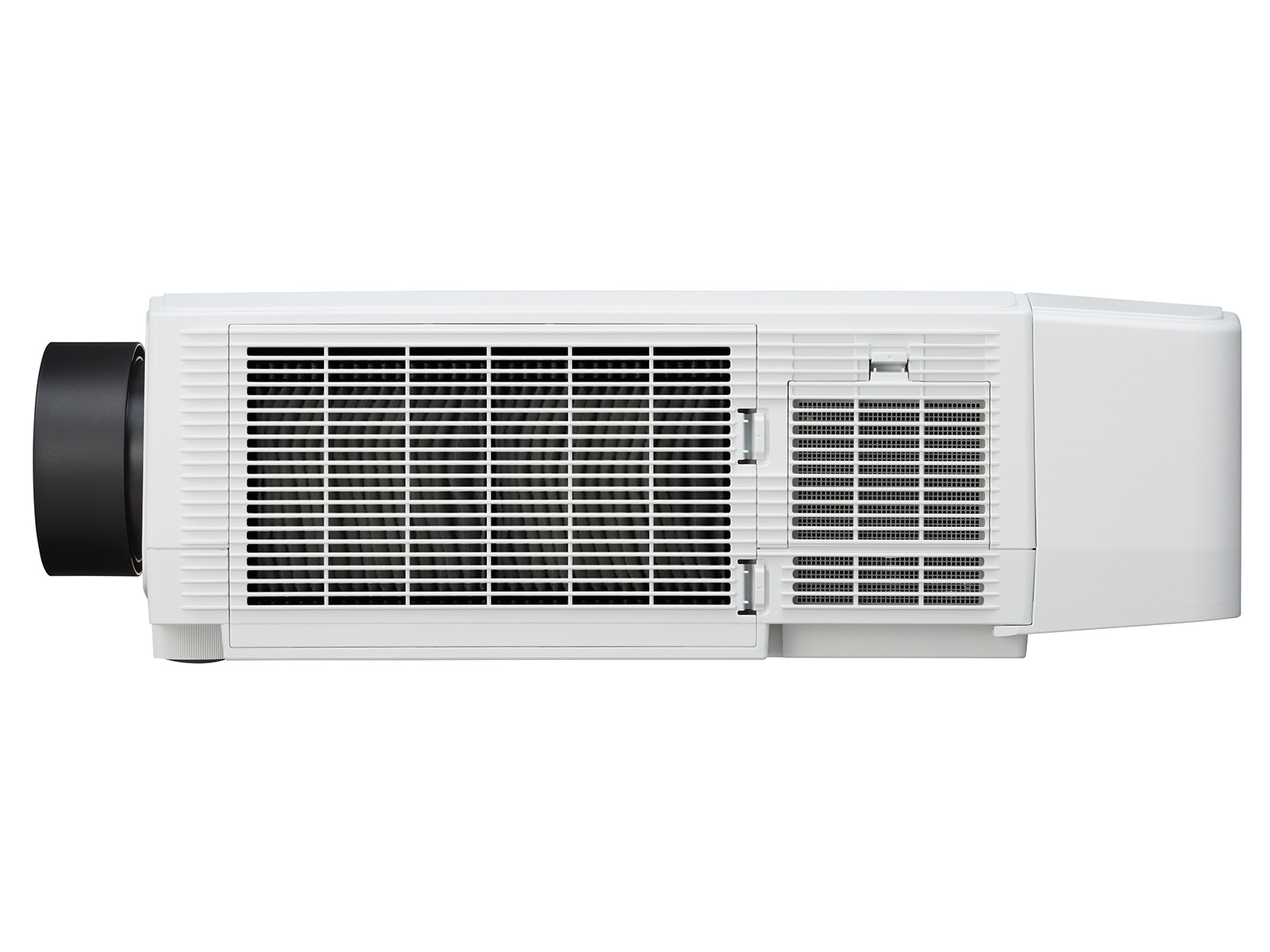

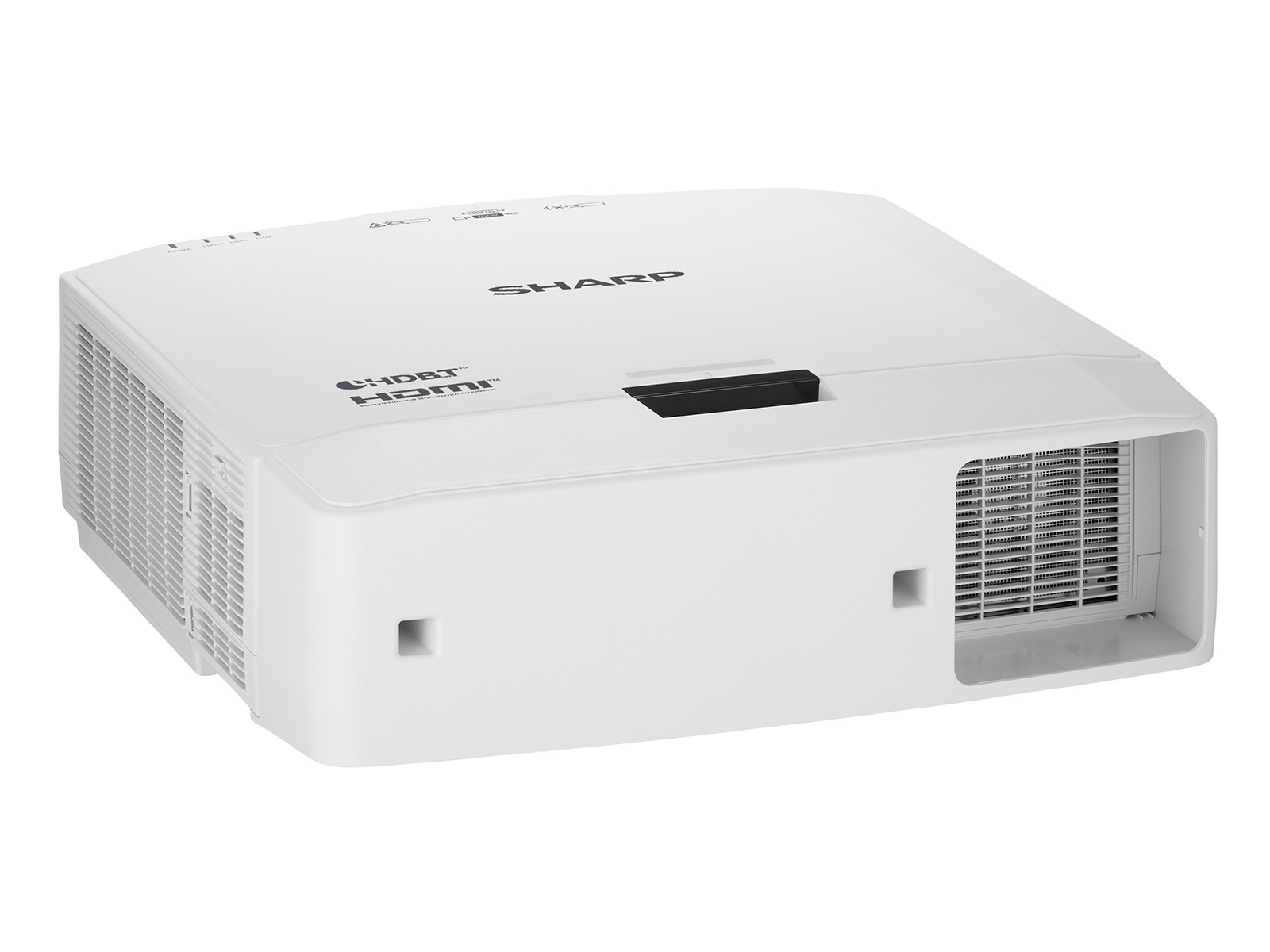

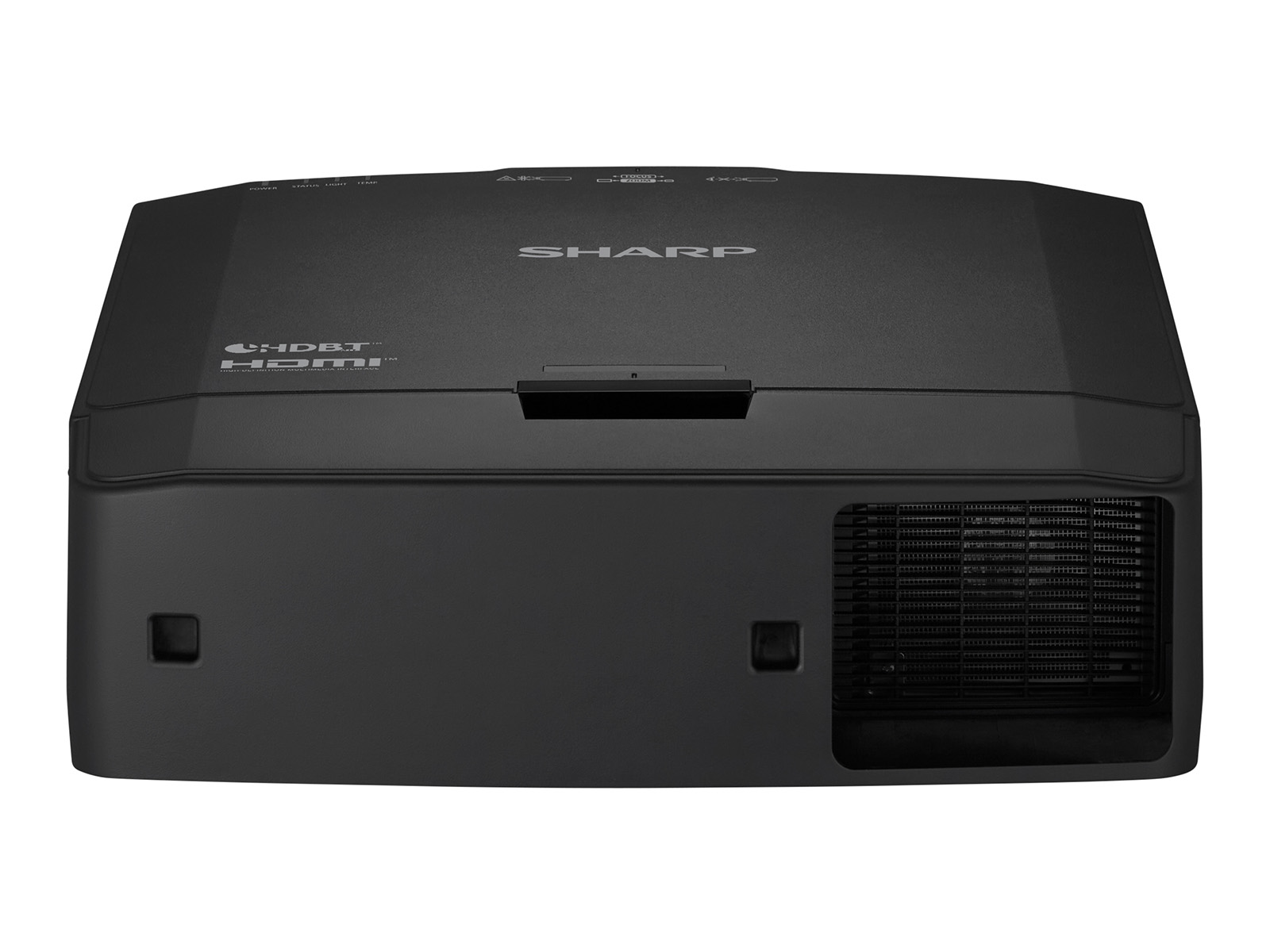

5 optional bayonet lenses; Air Filter (XP-06FT); Cable Cover (XP-10CV-W, XP-10CV-B); Universal Ceiling Mounts (PJ01UCM, PJ02UCMPF)
Lenses - motorized

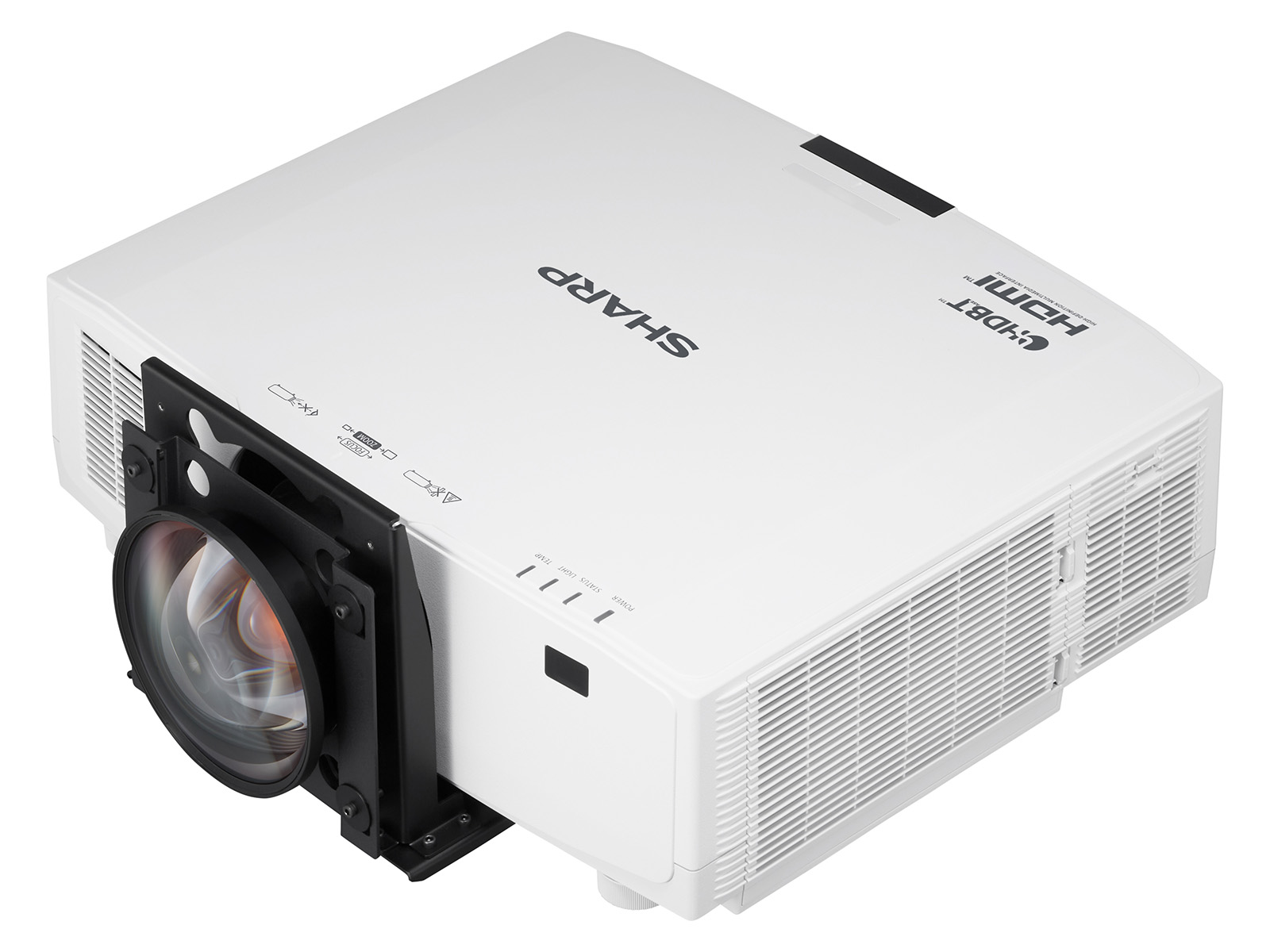

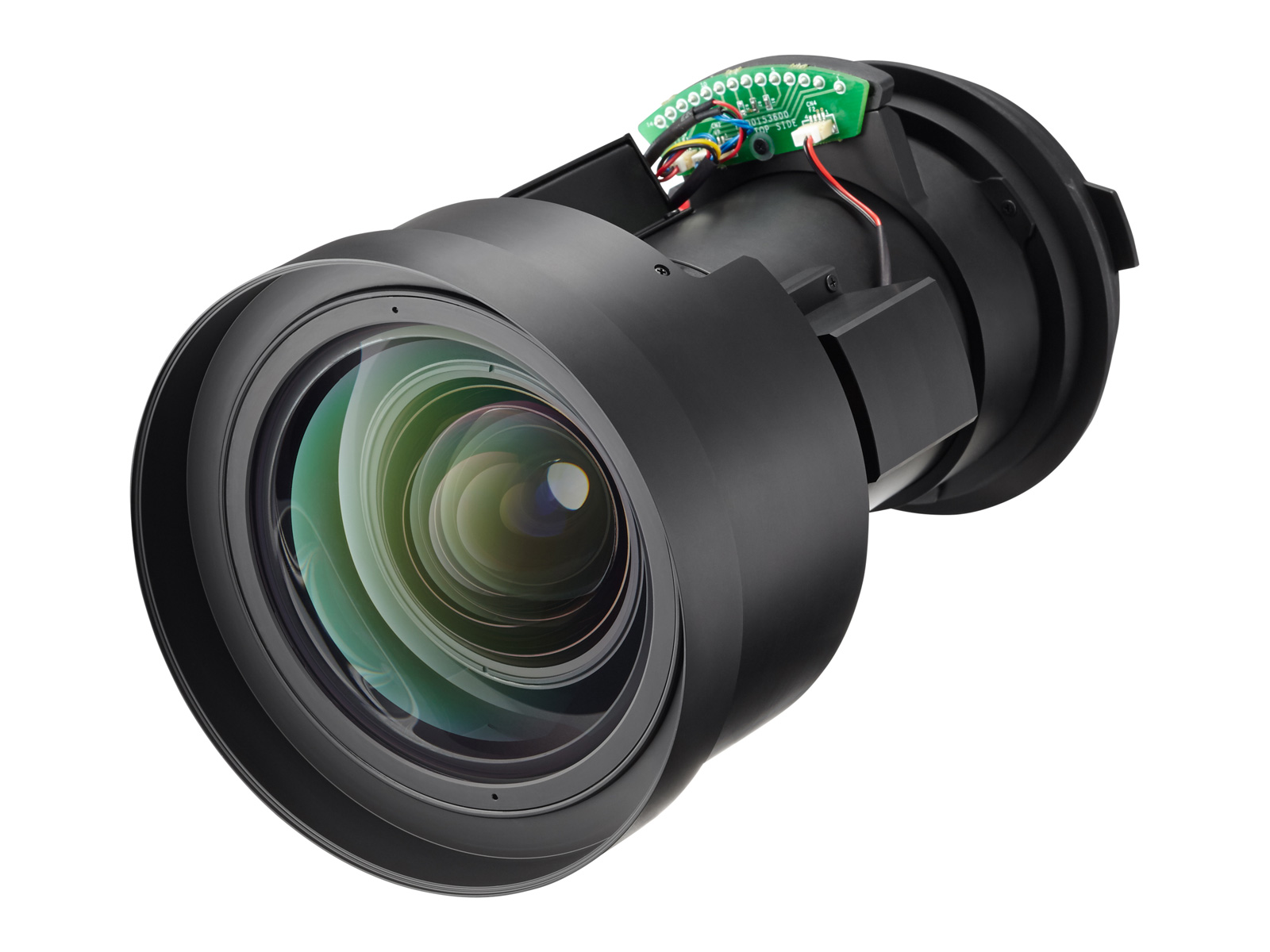

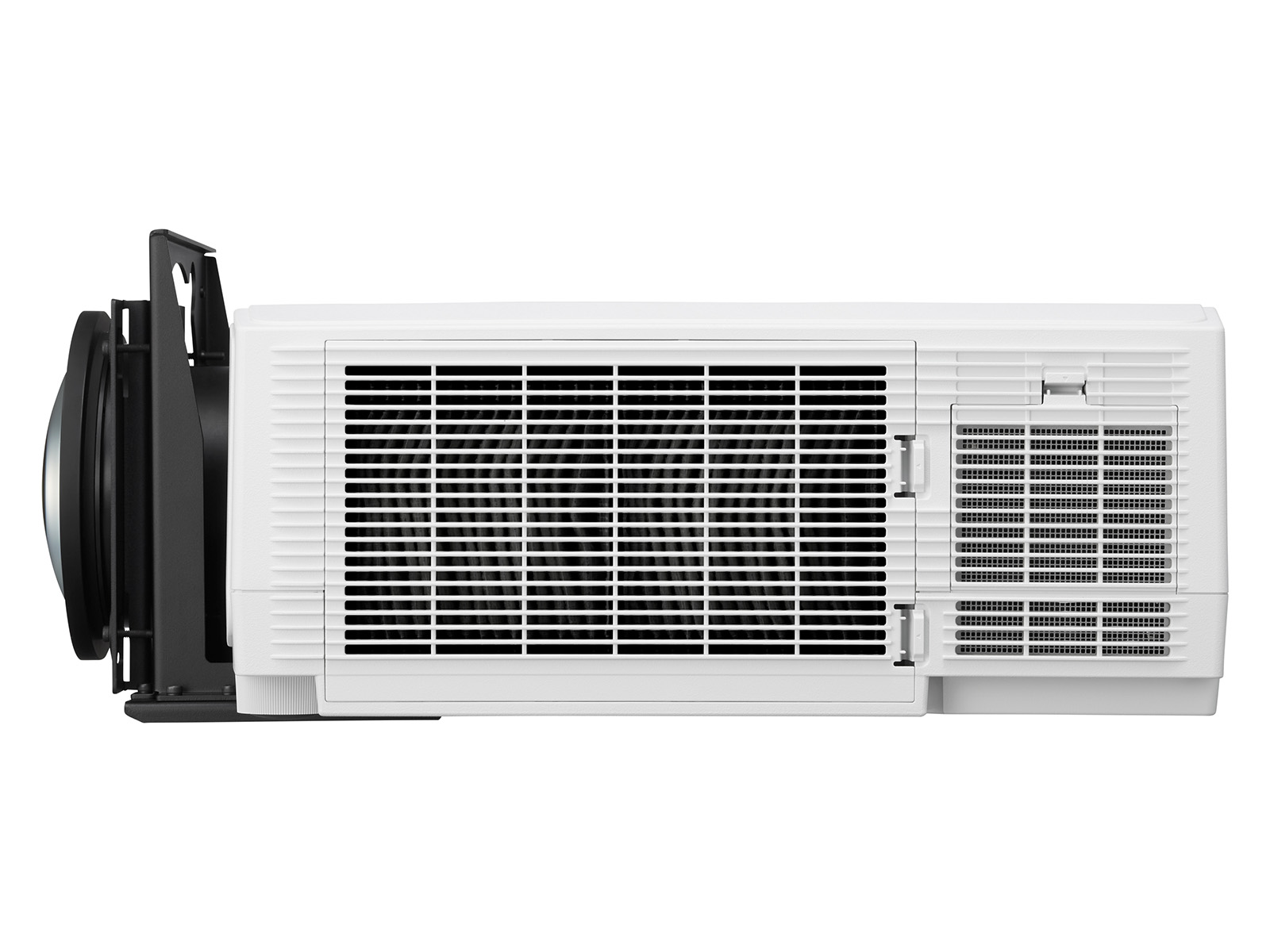

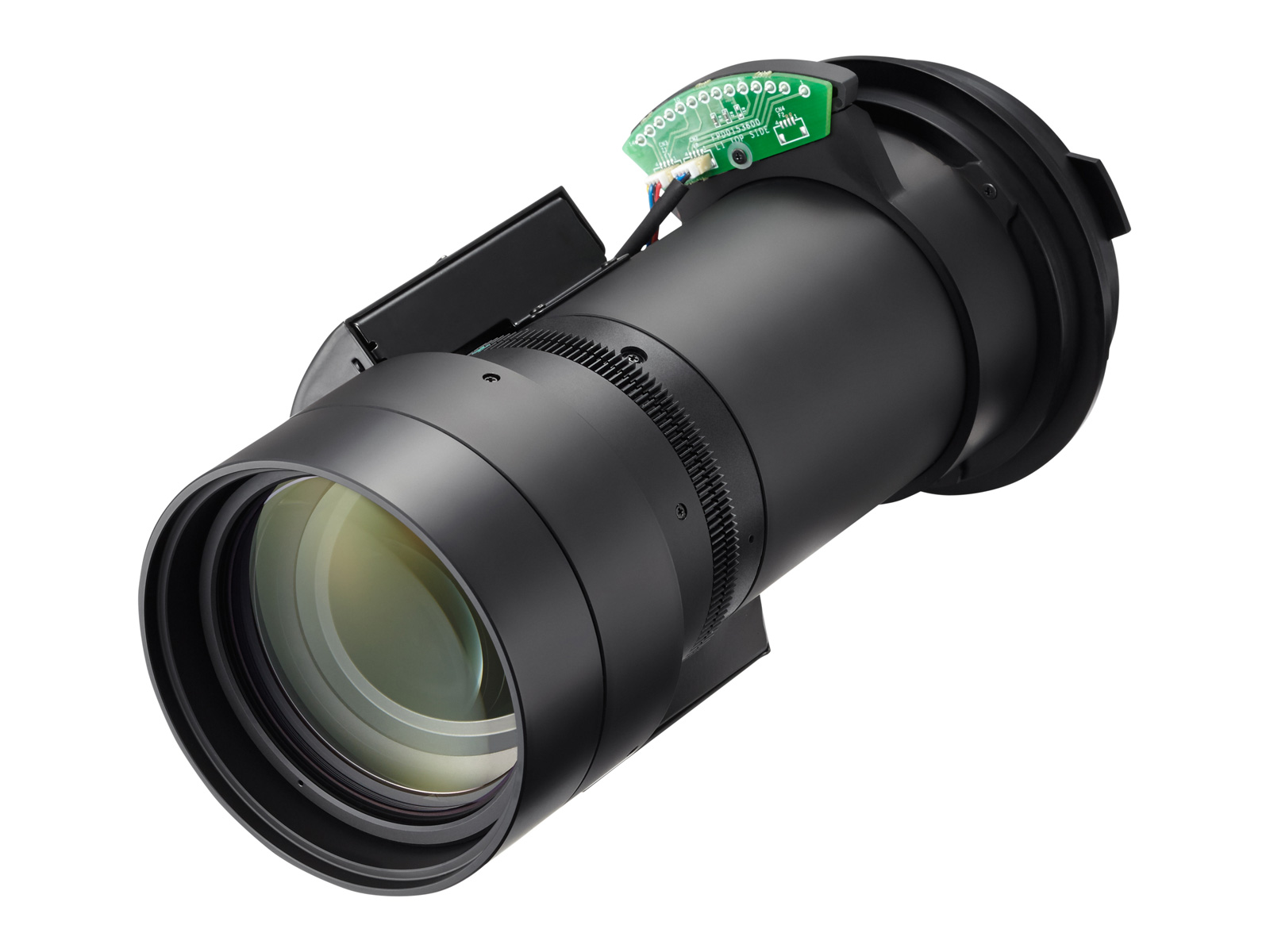

XP-40ZL/NP40ZL (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-V/NP44ML (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1)
1 50% of initial brightness at the end of specified laser life time at 25 degree ambient temperature.
