The excellent price performance ratio makes this projector especially suitable for classrooms and mid-sized meeting rooms. The filter free design with dust-protected DLP light engine, very long lamp life and low power consumption results into remarkably low cost of ownership. Various innovative new ECO functions such as the Ambient Light Sensor help to significantly reduce power consumption. A vast number of input terminals boosts connectivity and allows advanced interactive multimedia capabilities.
The interactive Multi-Pen option, with the optional DisplayNote presenter and Mosaic Canvas whiteboard software, turns this short-throw projector into the centrepiece of a modern learning and meeting environment.
Benefits
- Connect and share – with up to 40 wireless devices with the NEC Image Express Utility (Windows & MAC) as well as Wireless Image Utility (iOS & Android) software.
- Less Shadow and Glare – not standing in the light beam gives you more space to engage with your audience when presenting.
- Optional Multi-pen and Touch Interactivity – with auto-calibration on any kind of surface.
- Robust and dust resistant – thanks to sealed DLP light engine.
- Great connectivity – due to numerous analog and digital connection terminals as well as network capability.
Specifications
Product Information
Product Name

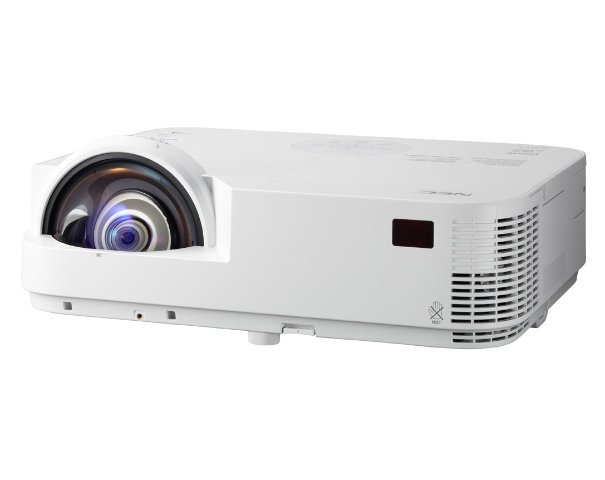

NEC M353WS
Product Group
Professional Short-Throw Projector
Order Code
60003975
Projection Technology
1-chip DLP™ Technology
Native Resolution
1280 x 800 (WXGA)
Aspect Ratio
16:10
Contrast Ratio
10000:1
Brightness
3500 Lumen (approx. 75% in Eco Mode)
Lamp
270 W AC (162 W AC Eco Mode)
Light Source Life [hrs]
8000 Eco / 5500 Normal / 3500 High Bright Mode
Lens
F= 2.4, f= 6.5 mm
Projection Angle [°]
40.7 - 40.9
Projection Factor
0.45 : 1
Projection Distance [m]
0.56 – 1.48
Screen Size (diagonal) [cm] / [inch]
152.4 / 60" - 381 / 150"
Zoom
Digital Zoom
Focus Adjustment
Manual
Supported Resolutions
1024 x 768 (XGA); 1152 x 864 (XGA); 1152 x 870 (MAC 21"); 1280 x 1024 (MAC 23"); 1280 x 1024 (Maximum resolution of digital input); 1280 x 1024 (SXGA); 1280 x 720 (HDTV 720p); 1280 x 768 (WXGA); 1280 x 800 (WXGA); 1280 x 960 (SXGA); 1360 x 768 (WXGA); 1366 x 768 (WXGA); 1400 x 1050 (SXGA+); 1440 x 900 (WXGA+); 1600 x 1200 (UXGA); 1600 x 900 (WXGA++); 1680 x 1050 (WSXGA+); 1920 x 1080 (HDTV 1080i/60; HDTV 1080i/50); 640 x 480 (VGA/MAC 13"); 720 x 480 (SDTV 480p); 720 x 480 SDTV 576p/576i; 720 x 576 (DVD progressive); 720 x 576 SDTV 480p/480i; 800 x 600 (SVGA); 832 x 624 (MAC 16")
Frequency
Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120 Hz

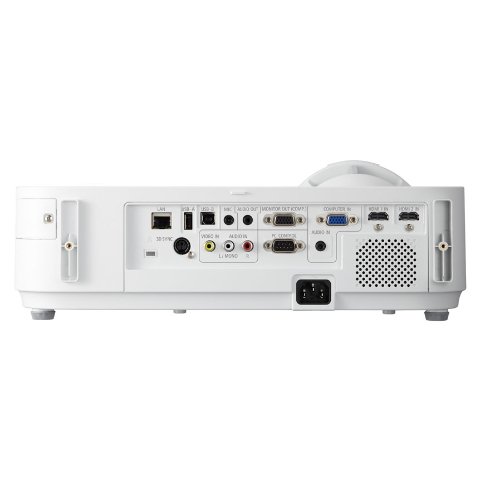

Connectivity
RGB (analog)
Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
Digital
Input: 2 x HDMI™ (Deep Color, Lip sync)
Video
Input: 1 x RCA
Audio
Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Microphone
Input: 1 x 3.5 mm Monaural Mini Jack (Dynamic mic / Condenser mic)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45; Optional WLAN
USB
1 x Type A (USB 2.0 high speed); 1 x Type B
3D Sync
Output: 1 x Mini DIN 3pin
Video Signals
NTSC; NTSC 4.43; PAL; PAL-M; PAL60; SECAM
Remote Control
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Automatic Picture Adjustment; AV Mute; Digital Zoom; Freeze; Help Eco Mode; ID set; Keystone Correction; Lamp Mode Control; Magnify-function; Optional Presentation and Mouse Control; Picture Adjust; Source Select
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
278 (Normal) / 246 (Eco) / 2.9 (Network Stand-by) / 0.4 (Stand-by); 335 (High Bright)
Mechanical
Dimensions (W x H x D) [mm]
368 x 97 x 286 (without lens and feet)
Weight [kg]
3.6
Fan Noise [dB (A)]
30 / 30 / 36 (ECO / Normal / High Bright)
Environmental Conditions
Operating Temperature [°C]
5 to 40
Operating Humidity [%]
20 to 80
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80
Ergonomics
Safety and Ergonomics
CE; EAC; Gost-R; RoHS; TUEV Type Approved
Speakers [W]
1 x 20 (mono)
Additional Features
Special Characteristics
3D ready; Ambient Light Sensor; Auto Eco Mode; Auto Power-ON Function; Automatic and manual Keystone Correction (V= +/-30°); Carbon Savings Meter; Colour Management; Constant Brightness Mode; Content Transmission via Network; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Full 3D DLP® LINK support; High Altitude Mode; Kensington security slot; Keypad Lock; Magnify; NaViSet Administrator 2; Off-Timer; Optional User Logo; Optional WLAN; OSD with 29 languages; Password Security System; Quick Start; Remote control and administration via LAN and RS232; Security Bar; Simple Access Point; USB Viewer for JPEG; Virtual Remote for direct PC control; Wall Colour Correction
Green Features
Energy Efficiency
75 % AV mute function; Auto ECO mode; ECO scheduler; Green one touch ECO and AV mute button; ImageCare® Technology; Intelligent power management; Longer light source life; Reduced power consumption. Only 0.4W stand-by; Software scheduling
Ecological Materials
100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant; WEEE
Warranty
Projectors
3 years pan-European service
Light Source
6 months, max. 1000 hrs
Shipping Content
Shipping Contents
IR Remote Control (RD-469E); Lens Cap; Mini D-SUB Signal Cable; Power Cord (3 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM
Optional Accessories
Optional Accessories
Cable Cover (NP05CV); DisplayNote; DLP-Link 3D Glasses (NP02GL, VolfoniFit); Interactive Unit (NP03Wi); Lamp (NP30LP); Wall Mount Kit (NP05WK); Wireless LAN module (NP05LM)
