Re-imagine your desktop computing experience
With the MultiSync EA Series, Sharp has developed monitor solutions that push the boundaries of what you’ve come to know as business-class screen performance. The EA Series deliver a completely redesigned chassis with a host of enhanced features, advanced technologies, future-proof connectivity and environmentally friendly benefits. All models utilise IPS LCD panels, which boast the best possible colour accuracy and minimal viewing angle shift.
Every model features LED backlights, enabling a thin and light design. Other green features include ECO Mode™, a carbon footprint meter and an ambient light sensor, which automatically adjusts the brightness to the optimal setting depending on ambient lighting, screen content or both.
Benefits
- Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
- Ease of multi-display control – manage the settings of up to 5 displays in a multi-monitor configuration via the master display with ControlSync® technology.
- Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
- Maximise image quality with Uniformity Control – benefit from perfect uniformity across multi-screen setups with just one click in the display’s on-screen menu.
- Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.
Specifications
Product Information
Product Name

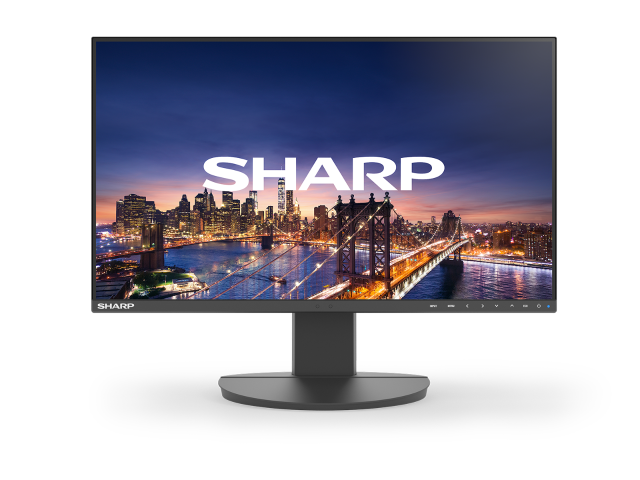

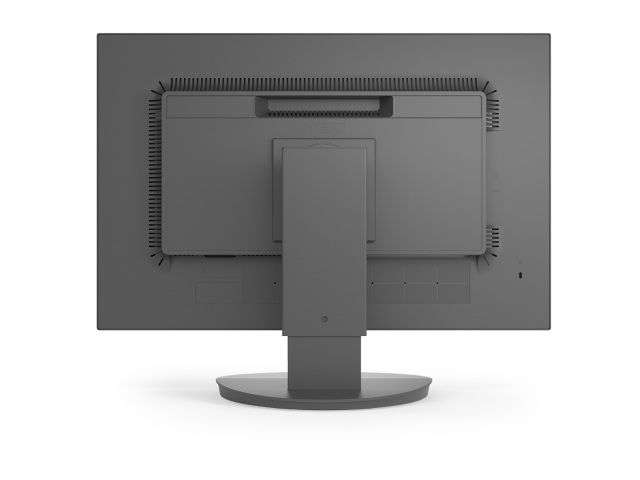

Sharp MultiSync® EA271F
Product Group
LCD 27" Enterprise Display
Order Code
60006208 (BK),
60006209 (WH)
Display
Panel Technology
AH-IPS LCD with LED Backlight
Screen Size [inch/cm]
27 / 69
Screen Aspect Ratio
16:9
Colour Gamuts
102 % sRGB; 75.5% AdobeRGB, 72% NTSC
Pixel Pitch [mm]
0.311
Brightness (typ.) [cd/m²]
250
Contrast Ratio (typ.)
1000:1 (5000:1 dynamic contrast ratio)
Response Time (typ.) [ms]
6
Colours [Mio.]
16.777
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 83
Vertical Frequency [Hz]
56 - 75
Resolution
Optimum Resolution
1920 x 1080 at 60 Hz
Supported
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 960; 1440 x 900; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400 (70 Hz); 800 x 600
Connectivity
Digital
1 x DisplayPort; 1 x DVI-D; 1 x HDMI; USB ver. 3.1 (3 down / 1 up)
Analog
1 x VGA
Electrical
Power Consumption on Mode [W]
12 (Eco Mode 2); 17 (Eco Mode); 17 (typ.); 45 (max.)
Power Savings Mode [W]
< 0.5
Power Supply
0.85 A/0.45 A; 100-240 V; integrated power supply
Environmental Conditions
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 85
Storage Temperature [°C]
-10 to 60
Ergonomics
Height adjustable stand [mm]
150 (Landscape mode)
Screen Tilt [°]
-5 to 35
Screen Swivel [°]
-170 to Value
Screen Rotate [°]
-90 to 90 (landscape to portrait mode)
Mechanical
Bezel Width [mm]
1 (left and right); 1 (top)
Dimensions (W x H x D) [mm]
359.8 x 628.4 - 652.6 x 250 (Portrait mode); 610.2 x 377.3 - 527.3 x 250 (Landscape mode)
Weight [kg]
With stand: 7.6; Without stand: 5
VESA Mounting [mm]
100 x 100
Additional Features
Special Characteristics
Ambient light sensor for optimized brightness levels; Auto Contrast; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM simulation; EcoModes; ErgoDesign®: Height adjustable stand (150 mm) with 90° Pivot features; Human Sensor; LED Backlight Technology; Quick release Stand and Handle; USB ver. 3.1 (3 down / 1 up); Versatile and easy installation (VESA standard) with NaViSet and NaViKey; Windows 10 compatible
Colour Versions
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management
yes
Kensington security slot
yes
Plug and Play
DDC2B/2Bi; EDID Standard; VESA DDC/CI
Audio
Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions
Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV Mode; EcoMode; Factory Preset; Fine Adjust (analog); Human Sensing; Intelligent Power Management; Language Select; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One Touch Recovery; Power-Off Timer; sRGB
Shipping Content
Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Set-up Manual; Setup Guide; USB Cable
Safety and Ergonomics
CE; EAC; EnergyStar 8.0; ErP; FCC Class B; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Warranty
3 years warranty incl. backlight; optional 1st to 3rd year 24/7 usage warranty; optional 4th to 5th year warranty extension
Optional Accessories
MDSVSENSOR Value
Green Features
Energy Efficiency
Ambient light sensor; Auto brightness; Carbon footprint meter / Carbon savings meter; ECOMode; Energy consumption: 11 kWh/1000 h; Energy efficiency class: C; Human sensor; LED backlight technology
Ecological Materials
Efficient mechanical design for minimised packaging; Minimal use of harmful material
Ecological Standards
Energy Star 8.0; ErP compliant; TCO 8.0; WEEE
* EnergyStar 8.0
* TCO 8.0
