MultiSync® V552 is one of the first large format displays to feature a professional LCD panel with Edge LED backlights. Thanks to this new backlight technology, power consumption, weight and depth could be further reduced from the mark set by its predecessor. This generation of V Series features NEC OPS Slot and allows for the seamless integration of various PC boards, HDSDI interfaces and other OPS compatible products.
Ideal for cost efficient retail signage, conferencing applications and lobby or reception installations.
Benefits
- Programmable Ambient Light Sensor – automatically adapts brightness to suit ambient light conditions ensuring reduced power consumption and eye pleasing luminosity levels.
- Unique NEC heat management – enables the user to monitor and control the heat inside the display with user controllable fans. Heat management is crucial for larger walls and mission critical installations to secure reliability and longevity.
- DICOM support – for medical applications.
- Ease of Installation and Operation – free LAN control software for central, convenient and cost-efficient maintenance and control. Automatic alarm emails notify the user of problems if they should occur.
- Free Download of Multi-Display Management Software – with NaViSet Administrator 2 you can manage all your connected display devices from a centralised location.
Specifications
Product Information
Product Name
NEC MultiSync® V552
Product Group
LCD 55" Midrange Large Format Display
Order Code
60003396
Display
Panel Technology
AMVA3 with Edge LED backlights
Active Screen Area (W x H) [mm]
1,209.6 x 680.4
Screen Size [inch/cm]
55 / 140
Aspect Ratio
16:9
Brightness [cd/m²]
500, 300 Eco (shipment setting)
Contrast Ratio (typ.)
4000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
6.5 (grey-to-grey)
Panel Refresh Rate [Hz]
60
Haze Level [%]
11
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
1920 x 1080 at 60 Hz
Supported Resolutions
1024 x 768; 1140 x 900; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 786; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600
Supported on digital inputs (Video)
1280 x 720p (50)16:9; 1920 x 1080i (59.94/60)16:9; 1920 x 1080p (23.97/24)16:9; 1920 x 1080p (25)16:9; 1920 x 1080p (29.97/30)16:9; 1920 x 1080p (50)16:9; 1920 x 1080p (59.94/60)16:9; 720 x 480p (59.94/60)16:9; 720 x 576p (50)16:9
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]
25.2 - 85

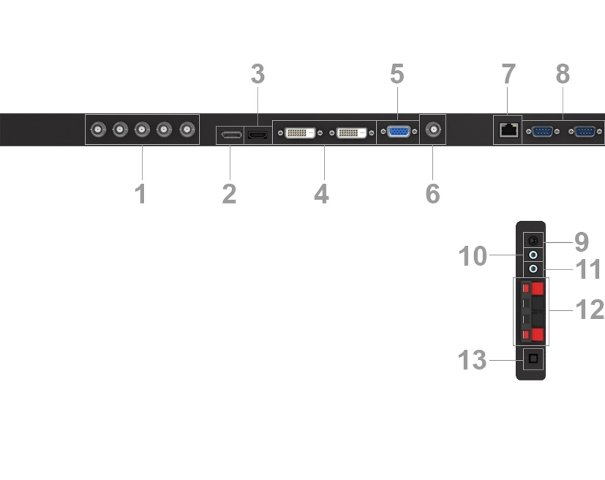

Connectivity
Input Video Analogue
1 x D-sub 15 pin; Composite (BNC); RGBHV for PC and Component/Composite (BNC)
Input Video Digital
1 x DisplayPort; 1 x DVI-D (with HDCP); 1 x HDMI 1.3
Input Audio Analogue
1 x 3,5 mm jack
Input Audio Digital
1 x HDMI; DisplayPort
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital
1 x DVI-D
Output Audio Analogue
3,5mm jack
Output Control
RS232
Remote Control
LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input and Output
Option Slot
Slot Technology
STv2 (compatible with Intel / NEC OPS standard)
Inrush Current [A]
max. 10
Power Consumption [W]
max. 61
Voltage / Current [V/A]
16/4
Electrical
Power Consumption [W]
96 Eco (shipment setting), 130
Power Savings Mode [W]
< 0.5 (ECO Standby); < 1
Power Management
VESA DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to +60
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,249.7 x 720.5 x 63.5
Weight [kg]
Without stand: 26.5
Bezel Width [mm]
18.3 (left and right); 18.3 (top and bottom)
VESA Mounting [mm]
300 x 300 (FDMI); 4 holes; M6
Ingress Protection
IP40 (front); IP20 (back)
Available Options
Accessories
Feet (ST-4620); Speaker (SP-RM1, SP-TF1, SP-55SM); Trolley (PDMHM-L); Wall mount (PDW S 32-55 L and P, PD03W T L L, PD03W T M P)
Option Slot
HD-SDI 1.5 and 3G; Intel Atom, Celeron and Core CPUs
Regulatory
Safety and Ergonomics
C-tick; CE; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Green Features
Energy Efficiency
Ambient light sensor; Annual energy consumption: 140 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: A
Ecological Materials
Manuals on CD; Optional feet
Additional Features
Special Characteristics
Advanced fan control; Automatic Alarm E-Mails; Copy display settings through RS232; DICOM Simulation; Hardware colour calibration possible; Input name adjustment; Matrix memory; NaViSet Administrator 2 - free download; OSD rotation for portrait mode; Scheduler; Screen saver functions; TileMatrix (10 x 10); User input priority definition; Various picture in picture options
Colour Versions
Black Front Bezel, Black Back Cabinet
Audio
Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Plug and Play
VESA DDC2Bi
Shipping Content
Display; DVI-D cable; Free LAN control software (download); Power Cable; Remote Control
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 1
Operating Hours
24/7
1 please refer to terms and conditions of warranty extensions
