Your first choice for digital signage

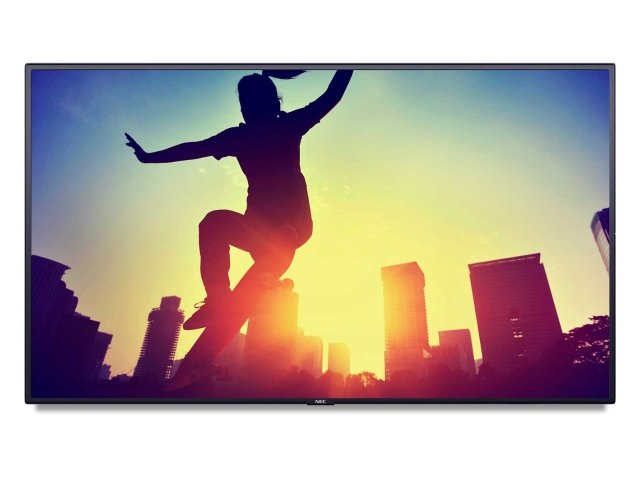

For compelling digital signage results, NEC’s MultiSync® V404 delivers professional capabilities with worry free operation yet at the lowest operational investment.
Convincing visibility under common light conditions is guaranteed thanks to the combination of a brightness output of 500 cd/m² and an anti-glare surface. The modern and slim design is the perfect fit to complement the surrounding architecture as well as for integration into any application and environment. The wide range of connectivity options and compatibility with high resolution signals up to 4K/60Hz secure a futureproof investment providing a long-lasting success story. The Open Modular Intelligence (OMI) approach is the smartest way to deliver tailor-made signage solutions, where scalable computing power such as Raspberry Pi compute modules or OPS Slot-in PCs are seamlessly embedded into the display.
The 40” MultiSync® V404 is the perfect choice for shorter viewing distances or big messages in retail environments, leisure and museum applications, quick service restaurants, for corporate information and all other public spaces.
Benefits
- Reliable colour reproduction – due to 10-bit colour performance, extreme viewing angles and hardware calibratable LUT, viewers benefit from consistently accurate image rendering.
- Future Ready with Open Modular Intelligence Expansion – upgrade the power of your display at any time by seamlessly integrating one of NEC’s options for OPS Slot-in PCs, Raspberry Pi compute modules or signal interfaces for content feed and computing.
- All-in-one Signage solution integrated – the integrated mediaplayer for simple signage use supports easy content playback and management.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Ease of use and operation – smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
Specifications
Product Information
Product Name
NEC MultiSync® V404
Product Group
LCD 40" Midrange Large Format Display
Order Code
60004033
Display
Panel Technology
S-PVA with edge LED backlights
Active Screen Area (W x H) [mm]
885.6 x 498.2
Screen Size [inch/cm]
40 / 101.6
Brightness [cd/m²]
500, 350 Eco (shipment setting)
Contrast Ratio (typ.)
4000:1
Viewing Angle [°]
178 / 178 (at contrast ratio > 10:1)
Colour Depth [bn]
1.073 (10bit)
Response Time (typ.) [ms]
8 (grey-to-grey)
Haze Level [%]
Pro (25)
Supported Orientation
Landscape, Portrait, Face Up, Face Down 1
Resolution
Native Resolution
1920 x 1080
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1280 x 960; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 800 x 600
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]
24 - 85
Connectivity
Input Video Analogue
1 x VGA
Input Video Digital
1 x DVI-D (with HDCP); 2 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Analogue
2 x 3,5 mm jack
Input Audio Digital
2 x DisplayPort; 2 x HDMI
Input Control
1 x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data
1 x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer); 1 x USB 2.0 (Service); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered)
Output Video Digital
1 x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
Output Audio Analogue
1 x 3,5 mm jack
Output Control
1 x LAN 100Mbit
Open Modular Intelligence
OPS Slot
Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
OPS Max. Current / Power Consumption [A / W]
10 / 61
Compute Module Slot
Slot Technology: Compute Module 3 Slot (NEC proprietary standard)
Sensors
Ambient Light Sensor
Integrated, triggered actions programmable
Human Sensor
Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor
Integrated, 3 sensors, triggered actions programmable
NFC Sensor
Integrated, 2cm range, free NEC Android App required
Electrical
Power Consumption [W]
75 Eco (shipment setting), 95
Power Savings Mode [W]
< 0.5 (ECO Standby); < 3 (Networked Standby)
Power Management
VESA DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Mechanical
Dimensions (W x H x D) [mm]
918 x 530.6 x 54.7
Weight [kg]
14.5
Bezel Width [mm]
13.2 (left and right); 13.2 (top and bottom)
VESA Mounting [mm]
300 x 300 (FDMI); 4 holes; M6
Ingress Protection
IP5X (front); IP2X (back)
MediaPlayer
Supported File Storage / File System
MicroSDHC / FAT16, FAT32; USB 2.0 / FAT16, FAT32
Supported Image Formats
JPG (baseline, progressive, RGB, CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha channel); max. resolution 4000 x 4000
Supported Video Formats
MP4 / MOV / FLV (video H.264, audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60 Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP @ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple / main, audio mp3 wmv std); max. resolution 1080p at 30 Hz, 1080i at 60 Hz
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s; WAV (LPCM); max. 48 kHz sampling
Available Options
Accessories
Feet (ST-401); Speaker (SP-TF1, SP-RM3); Trolley (PDMHM-L); Wall mount (PDW S 32-55 L and P, PD02W T M L, PD03W T M P)
Compute Module Slot
NEC Compute Module; Raspberry Pi Compute Module 1 and 3
OPS Slot
HD-SDI 1.5G, 3G; HDBaseT receiver; Intel® Atom, Celeron and Core CPUs; OPS-2C HDMI + DP Interface; OPS-2C Quad 3G SDI
Regulatory
Safety and Ergonomics
C-tick; CE; EMC Class B; FCC; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Pixel Failure Class
ISO 9241-307, Class 2
Green Features
Energy Efficiency
Ambient light sensor; Carbon savings meter; ECOMode; Energy consumption: 92 kWh/1000 h; Energy efficiency class: G; Human sensor
Ecological Materials
Manuals on CD; Optional feet
Ecological Standards
EnergyStar 7.0
Additional Features
Special Characteristics
Ambient Light Sensor; AMX NetLinx Support; ASCII Control Commands; Auto ID assignment; Auto tiling function; Automated Email Alert; CEC Support; Cisco Webex Kit compatible; Crestron RoomView Support; DICOM Simulation; Display Browser Control; Emergency Notification; Full System Scheduler; Hardware colour calibration possible; Image flip; Intelligent Wireless Data (based on NFC); KeyGuide; MediaPlayer with Browser Control; NaViSet Administrator 2 - free download; OmniColor Control; OSD rotation for portrait mode; PJLink Support; Point Zoom Function; Powered USB-Port; Programmable 12-bit LUT with 3 memory banks; Removable Logo; Secure Mode Operation; Slim LED Indicator; SNMP Support; TileMatrix (10 x 10); User readable log function; Various picture in picture options
Colour Versions
Black Front Bezel, Black Back Cabinet; optional coloured overframes
Audio
Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content
CD-ROM (User Guides/Manuals); Display; HDMI Cable; Power Cable; Remote Control
Warranty
3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 2
Operating Hours
24/7
1 adjusted usage conditions for face up/down installations, please refer to operational guidelines or contact our support
2 please refer to terms and conditions of warranty extensions
