Bringing exceptional long lamp life performance to the classroom and small meeting room, for classic presentation usage the new generation ME series delivers standard throw projection that’s anything but standard. Keeping operational costs to a minimum with no lamp costs to factor in, users enjoy up to 20,000 hours of trouble-free projection and no lamp replacement efforts.
A large 1.6x optical zoom brings impressive integration flexibility making it easier to position the projector in the room, whilst existing ceiling mount locations can be utilised without the need to reposition.
For seamless hand-over between presenters, the projector provides advanced wireless capabilities with an embedded MultiPresenter function, allowing multiple users to connect and share content without having to switch cables.
Benefits
- Minimized cost of ownership – due to long lamp life and filter exchange intervals.
- Versatile and mobile – compact and light-weight with HDMI and integrated 16W speaker.
- Display content that demands attention – with WUXGA resolution and superb brightness levels and colour ranges, your viewers will enjoy an outstanding visual experience.
- Wide array of flexible application scenarios – thanks to multi-source conferencing and efficient split-screen operation supported by a wide future-ready range of digital connectivity.
Specifications
Product Information
Product Name

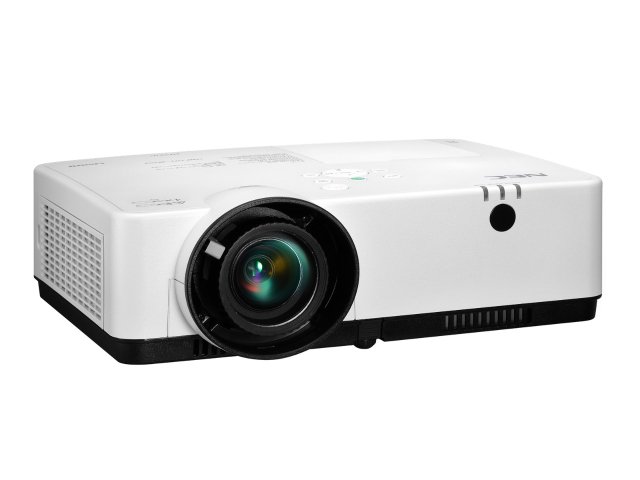

NEC ME403U
Product Group
Multi-purpose Business Lamp Projector
Order Code
60005221
Projection Technology
3LCD Technology
Native Resolution
1920 x 1200 (WUXGA)
Aspect Ratio
16:10
Contrast Ratio
16000:1
Brightness
3700 Normal / 3000 Lumen Eco; 4200 Centre Lumen; compliant with ISO21118-2012
Brightness (Boost Mode)
4000 Lumen
Lamp
225 W AC (151 W AC Eco Mode)
Light Source Life [hrs]
10000 (20000 Eco Mode)
Lens
F= 1.5–2.08, f= 17.2–27.7 mm
Keystone correction
+/- 30° manual horizontal / +/- 30° automatic / manual vertical
Projection Angle [°]
6.9 - 11.1
Projection Factor
1.2 – 2 : 1
Projection Distance [m]
0.75 – 12.88
Screen Size (diagonal) [cm] / [inch]
Maximum: 762 / 300"; Minimum: 76 / 30"
Zoom
Manual; x1.6
Focus Adjustment
Manual
Supported Resolutions
1920x1200 (Maximum resolution of analog input)
Frequency
Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 24 – 85 Hz
Connectivity
RGB (analog)
Input: 1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Output: 1 x Mini D-sub 15 pin
Output: 1 x Mini D-sub 15 pin
Digital
Input: 2 x HDMI™ (Deep Color, Lip sync)
Video
Input: 1 x RCA
Audio
Input: 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Control
Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN
1 x RJ45; Optional WLAN
USB
1 x Type B; 1x Type A (USB 2.0 high speed) with 1.5 Power Supply
Video Signals
NTSC; PAL; PAL60; SECAM
Remote Control
Remote Control
Aspect Ratio; Auto Adjust; AV Mute; Digital Zoom; Freeze; ID set; Optional Presentation and Mouse Control
Electrical
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption [W]
305 (High Bright) / 220 (Eco) / 1.5 (Network Stand-by) / 0.5 (Stand-by)
Mechanical
Dimensions (W x H x D) [mm]
345 x 104.6 x 261 (without lens and feet)
Weight [kg]
3.5
Fan Noise [dB (A)]
29 / 37 (Eco / Normal)
Colour Versions
White
Environmental Conditions
Operating Temperature [°C]
5 to 40
Operating Humidity [%]
20 to 80
Storage Temperature [°C]
-10 to 50
Storage Humidity [%]
20 to 80
Ergonomics
Safety and Ergonomics
CE; EAC; ErP; RoHS; TUEV Type Approved; WEEE
Speakers [W]
1 x 16 (mono)
Additional Features
Special Characteristics
Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Colour Management; Content Transmission via Network; Crestron RoomView; DICOM simulation; Direct Power-Off Function; High Altitude Mode; Kensington security slot; Keypad Lock; Lens Cover; Magnify; NaViSet Administrator 2; Off-Timer; Optional WLAN; OSD with 29 languages; Password Security System; Quick On/Off; RS-232 Control; Security Bar; USB Display; USB Viewer for JPEG; Wall Colour Correction
Green Features
Energy Efficiency
75 % AV mute function; Auto ECO mode; ECO scheduler; Green one touch ECO and AV mute button; Intelligent power management; Longer light source life; Software scheduling
Ecological Materials
100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant; WEEE
Warranty
Projectors
3 years pan-European service
Light Source
6 months, max. 1000 hrs
Shipping Content
Shipping Contents
2x AAA Batteries; IR Remote Control (RD-469E); Mini D-SUB Signal Cable (1.8 m); Quick Setup Guide; Security Sticker; Users Manual on CD-ROM; Utility software
Optional Accessories
Optional Accessories
Lamp (NP47LP); Universal Ceiling Mounts (Pj01UCM); Wireless LAN module NP05LM2 (Europe), NP05LM4 (Russia)
