Digital signage and real-time information deployed easily
Initiating effective communication to your target audience has never been easier to plan, install and operate. Deploying Signage with consistently updated information, real-time content adaption and scheduling has never been so simple.

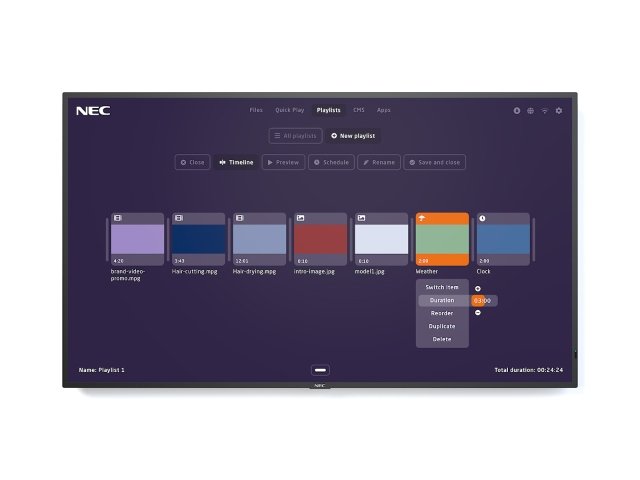

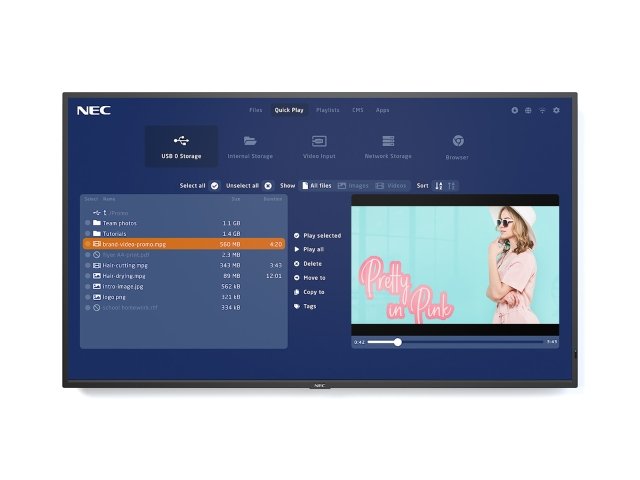

The MultiSync® M-MPi4 displays provide a sleek combination of intuitive media playback with professional digital display technology for impactful messaging in retail environments, leisure and museum applications as well as quick service restaurants. Fitting perfectly into corporate environments and public spaces, the modern, slim design integrates seamlessly with the surrounding architecture whilst the 500 cd/m² brightness output and anti-glare surface ensures excellent viewing.
Future-proof and upgradable, the NEC MediaPlayer software is powered by a pre-installed modular SoC Raspberry Pi module. Enabling remote operation of single and multiple display installations, benefit from flexible usage of many media types and a scheduling function for smart content management. For specific feature demands, the NEC MediaPlayer grants easy switching to the integrated Content Management Systems directly.
Benefits
Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
Intuitive Plug & Play solution – even when not familiar with using digital signage, users can facilitate stunning signage creation for immersive real-time visual experiences
Install third party software – expand the NEC MediaPlayer functionality via additional Apps or even switch to your preferred Content Management Systems (CMS) directly from of the NEC MediaPlayer
Everything under control – one single interface is needed to manage both the NEC MediaPlayer and the display directly, via a web-interface or the NEC Display remote control.
Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
Specifications
Product Information
Product Name
NEC MultiSync® M431-MPi4
Product Group
LCD 43" Midrange Large Format Display (incl. NEC MediaPlayer)
Order Code
60005380
Display
Panel Technology
IPS with Edge LED backlights
Screen Size [inch/cm]
43 / 108
Aspect Ratio
16:9
Brightness [cd/m²]
500
Contrast Ratio
≥ 8000:1 1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn]
1.076 (10bit)
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Pro (28)
Supported Orientation
Landscape; Portrait
Resolution
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
Synchronisation Rate
Horizontal Frequency [kHz]
26 - 91.1
Vertical Frequency [Hz]
23 - 86
Connectivity
Input Video Digital
1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital
1 x DisplayPort; 2 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data
1 x USB 2.0 (MediaPlayer)
Output Audio Analogue
1 x 3,5 mm jack
Input Detect
Custom; First; Last
Open Modular Intelligence
Intel® SDM
accepts Intel® Smart Display Modules Large and Small up to 45 W; compatible with Intel Celeron CPUs or CPUs with lower power consumption
Feet (ST-401/ST-43M); Presence Sensor (KT-RC3); Soundbar (active: SP-ASCM-IQ2 / SP-ASCM-2); Speaker (SP-RM3a); Trolley (PDMHM-L); Wall mount (PDW C L and P, PD02W T M L, PD03W T M P)
Regulatory
Safety and Ergonomics
BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class
ISO 9241-307, Class 1
Resistance to Fire
Metal backcover, plastic material certified acc. to UL94-5VB
Green Features
Energy Efficiency
Energy consumption: 68 kWh/1000 h; Energy efficiency class: G; LED backlight
Ecological Standards
EnergyStar 8.0
Additional Features
Special Characteristics
DICOM Simulation; HDMI ARC; Powered USB Port (10 W); Removable Logo
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All specifications are subject to change without notice. Errors and omissions are excepted. 08.02.2026
