NEC MultiSync® EA224WMi features an extremely thin LED backlight panel with IPS technology which results in an ultramodern and slim design in combination with a premium feature set for the corporate office use. Ambient Light and Human Sensors enforce the sustainable product concept while offering improved ergonomics with 130 mm height adjustability. Moreover the display offers broad connectivity with three inputs DisplayPort, DVID and D-Sub. Thanks to its excellent IPS image quality with wide viewing angles in 16:10 screen format, it offers a high level of ergonomic comfort.
Ideal for the corporate that demand style and future proof technology.
Benefits
- Feature Set for Perfect Office Use – Integrated Speakers, headphone jack and USB Hub provide excellent options for office communication.
- Green Product Concept – Eco Mode and Carbon Footprint Meter / Carbon Savings Meter, Ambient Light Sensor.
- Ambient Light Sensor – with Auto Brightness function always sets optimised brightness level according to ambient light and content conditions.
- Easy Control – of up to six displays in a multi-monitor configuration with ControlSync® technology.
- Human Sensor – detects the presence of a person in front of the screen; display switches on/off automatically depending on the presence of the user.
Specifications
Product Information
Product Name

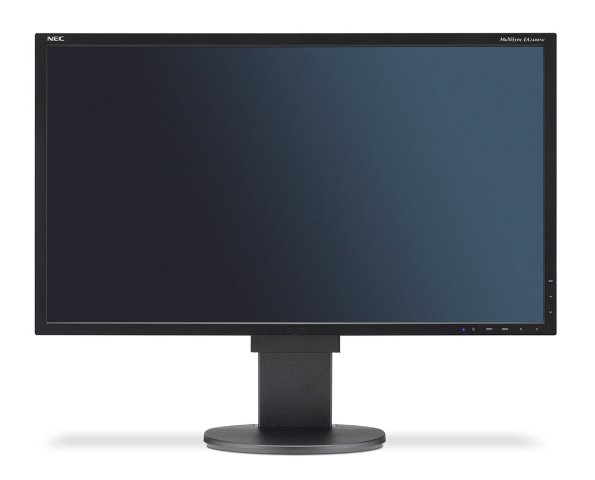

NEC MultiSync® EA244WMi
Product Group
LCD 24" Enterprise Display
Order Code
60003414 (BK),
60003409 (WH)
Display
Panel Technology
IPS TFT with W-LED backlight
Screen Size [inch/cm]
24 / 61
Screen Aspect Ratio
16:10
Pixel Pitch [mm]
0.270
Brightness (typ.) [cd/m²]
350
Contrast Ratio (typ.)
1000:1 (25000:1 dynamic contrast ratio)
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
6
Colours [Mio.]
16.77
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 77
Vertical Frequency [Hz]
56 - 60
Resolution
Optimum Resolution
1920 x 1200 at 60 Hz
Supported
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 960; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 640 x 480; 800 x 600
Connectivity
Digital
1 x DisplayPort; 1 x DVI-D (with HDCP); 1 x HDMI; USB ver. 2.0 (4 down / 1 up)
Analog
1 x mini D-sub 15 pin
Electrical
Power Consumption on Mode [W]
16 (Eco Mode); 19 (typ.); 29 (max.)
Power Savings Mode [W]
0.47
Power Supply
internal power supply
Environmental Conditions
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
Ergonomics
Height adjustable Stand [mm]
130
Screen Tilt / Swivel [°]
-5 to +30; -170 to +170
Screen Rotate [°]
0 to 90 (landscape to portrait mode)
Mechanical
Dimensions (W x H x D) [mm]
556.2 x 408.9 x 230
Weight [kg]
7.5
VESA Mounting [mm]
100 x 100
Additional Features
Special Characteristics
Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM preset; DICOM simulation; EcoModes; ErgoDesign®: Height adjustable stand (130 mm) with 90° Pivot features; Human Sensor; LED Backlight Technology; NaViSet Administrator 2; sRGB Support; Touch Sensor Keys; USB ver. 2.0 (4 down / 1 up)
Colour Versions
Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet
Cable Management
yes
Kensington security slot
yes
Plug and Play
VESA DDC2B; VESA DDCi
Audio
Headphone Jack; Integrated Speakers (1 W + 1 W)
Adjust Functions
Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV Mode; EcoMode; Fine Adjust (analog); Human Sensing; Intelligent Power Management; Language Select; LED Brightness; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One Touch Recovery; Power-Off Timer; sRGB
Shipping Content
Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Setup Guide; USB Cable
Safety and Ergonomics
CE; EnergyStar 6.0; FCC Class B; GEEA/Energy Label; ISO 9241-307 (pixel failure class I); MPR III; PCT/Gost; RoHS; TCO 6.0; TCO Edge Certified 1.2; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA
Warranty
3 years warranty incl. backlight; optional 4th to 5th year warranty extension
Green Features
Energy Efficiency
Ambient light sensor; Annual energy consumption: 28 kWh (based on 4 operating hours per day); Energy efficiency class: A+; Human sensor; Intelligent power management
Ecological Materials
Downloadable manuals
Ecological Standards
Energy Star 6.0; TCO Edge
* EnergyStar 6.0
