Enter the world of professional signage
In a digitised world, signage no longer is static. Information transfer via digital posters and information boards are common methods of information transfer. With E506 you can boost your business at low TCO, but with high reliability. Information where the audience stands close is perfectly transferred on this 50’’ screen. With the integrated media player, the display is designed for simple signage usage directly from a USB drive and once installed starts playing the content automatically at a certain time with the embedded autostart time schedule function. In this way the display helps you saving time and money. The 50’’ display of the 6th generation of our E Series is the perfect choice for essential applications in Retail Signage, Restaurants and Manufacturing & Engineering.
Benefits
- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
- Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
- Professional integration – enriched with essential RS232 functionality, IR and button lock out as well as digital audio output S/PDIF, the display can easily be integrated into professional applications in public environments.
Specifications
Product Information
Product Name

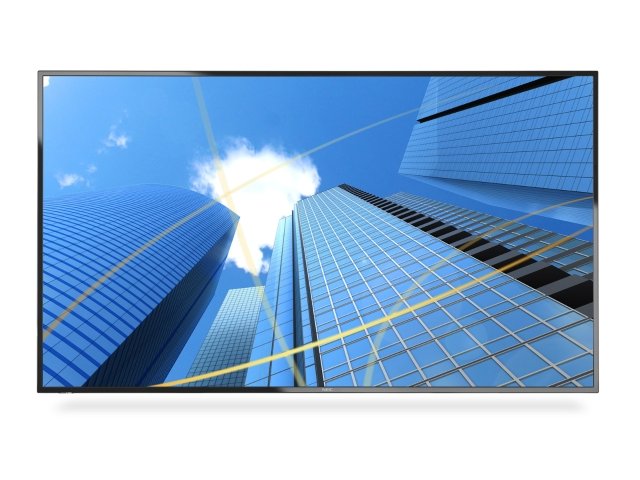

NEC MultiSync® E506
Product Group
LCD 50" Essential Large Format Display
Order Code
60004022
Display
Panel Technology
S-PVA with direct LED backlight
Active Screen Area (W x H) [mm]
1.096 x 616
Screen Size [inch/cm]
50 / 127
Aspect Ratio
16:9
Brightness [cd/m²]
350
Contrast Ratio (typ.)
3000:1
Viewing Angle [°]
176 horizontal / 176 vertical (typ. at contrast ratio 20:1)
Response Time (typ.) [ms]
8
Panel Refresh Rate [Hz]
60
Haze Level [%]
Standard (2)
Supported Orientation
Landscape
Resolution
Native Resolution
1920 x 1080
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 800; 1920 x 1080; 640 x 480; 800 x 600
Supported on HDMI only
1080i (50 Hz); 1080i (60 Hz); 1080p (24 Hz); 1080p (30 Hz); 1080p (50 Hz); 1080p (60 Hz); 480i (60 Hz); 480p (60 Hz); 576i (50 Hz); 576p (50 Hz); 720p (50 Hz); 720p (60 Hz)
Connectivity
Input Video Analogue
1 x VGA; Component (RCA); Composite (RCA)
Input Video Digital
3 x HDMI
Input Audio Digital
3 x HDMI
Output Audio Digital
1 x SPDIF
Remote Control
Remote Control IR; RS-232C (9-pin D-sub) Input
Electrical
Power Consumption [W]
79 shipping
Power Savings Mode [W]
< 0.5 (ECO Standby)
Power Management
VESA DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
10 to 80
Storage Humidity [%]
5 to 85
Storage Temperature [°C]
-10 to +60
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1.123 x 646 x 77
Weight [kg]
Without stand: 12.88
Bezel Width [mm]
11.9 (left/right/top); 14.9 (bottom)
VESA Mounting [mm]
4 holes; 400 x 200 (FDMI); M6
MediaPlayer
Supported Video Container Formats
MPG, MPEG, MPEG2-TS, MPEG2-PS, MP4, MKV, AVI, Motion JPEG
Supported Video Codecs
MPEG1, MPEG2, H.264, JPEG
Supported Audio Codecs (Video)
MPEG Audio Layer 2, MPEG Audio Layer 3, AC-3
Available Options
Accessories
Feet (ST-50E); Trolley (PDMHM-L); Wall mount (PDW S 32-55L)
Regulatory
Safety and Ergonomics
C-tick; CE; Energy Star 7.0; FCC Class B; PSB; REACH; RoHS; SASO; UL/C-UL or CSA
Pixel Failure Class
ISO 9241-307, Class 3
Green Features
Energy Efficiency
Annual energy consumption: 123 kWh (based on 4 operating hours per day); ECOMode; Energy efficiency class: A; LED backlight; Low power consumption
Ecological Standards
EnergyStar 7.0
Additional Features
Special Characteristics
Audio settings with equalizer; Colour temperature mode; Energy saving picture mode; Mac and Windows compatible; Retail picture mode; Scheduler; USB Media Player
Audio
Integrated Speakers (10 W + 10 W)
Shipping Content
Display; Power Cable; Remote Control; VGA cable
Warranty
3 years warranty incl. backlight
Operating Hours
12/7
