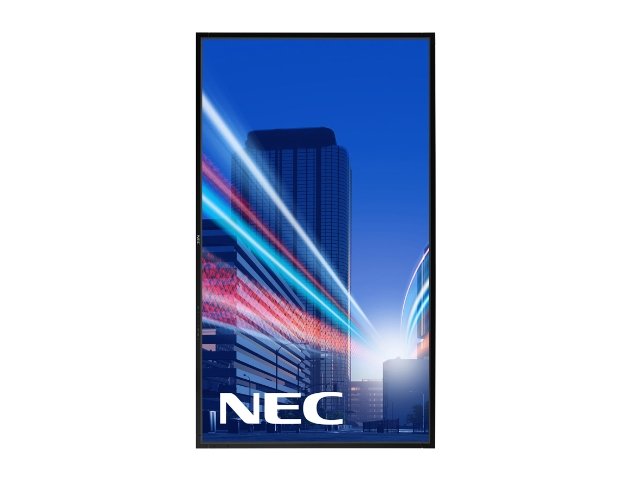

The superslim MultiSync® X462S delivers the longevity and reliability customers expect from a Public Display thanks to a professional Public Display panel and proven NEC engineering excellence. The reduced depth and light weight makes it easy to handle and integrate while the new slim option slot STv2 allows for the integration of powerful slot-in PCs and other option slot products.
Ideal for a wide array of applications such as retail signage including 24/7, transport applications, conference rooms, lobby/reception installations and integration in totems and furniture.
Benefits
- Super slim design – only 46.1 mm total depth.
- Colour Matching – the display can be hardware calibrated to display a certain colour temperature or brightness to match other displays in the same installation.
- DICOM support – for medical applications.
- Programmable Ambient Light Sensor – automatically adapts brightness to suit ambient light conditions ensuring reduced power consumption and eye pleasing luminosity levels.
- Unique NEC heat management – enables the user to monitor and control the heat inside the display with user controllable fans. Heat management is crucial for larger walls and mission critical installations to secure reliability and longevity.
Specifications
Product Information
Product Name
NEC MultiSync® X462S
Product Group
LCD 46" Professional Large Format Display
Order Code
60003399
Display
Panel Technology
S-PVA with edge LED backlights
Active Screen Area (W x H) [mm]
1,018.1 x 572.7
Screen Size [inch/cm]
46 / 117
Aspect Ratio
16:9
Brightness [cd/m²]
700, 420 Eco (shipment setting)
Contrast Ratio (typ.)
4000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
8 (grey-to-grey)
Panel Refresh Rate [Hz]
60
Haze Level [%]
44
Supported Orientation
Face Up 1; Landscape; Portrait
Resolution
Native Resolution
1920 x 1080 at 60 Hz
Supported Resolutions
1024 x 768; 1280 x 1024; 1280 x 720; 1280 x 768; 1280 x 800; 1280 x 960; 1366 x 768; 1400 x 1050; 1600 x 1200; 1680 x 1050; 1920 x 1080; 640 x 480; 720 x 400; 720 x 576; 800 x 600
Supported on digital inputs (Video)
1280 x 720p (50)16:9; 1280 x 720p (59.94/60)16:9; 1920 x 1080i (50)16:9; 1920 x 1080i (59.94/60)16:9; 1920 x 1080p (23.97/24)16:9; 1920 x 1080p (25)16:9; 1920 x 1080p (29.97/30)16:9; 1920 x 1080p (50)16:9; 1920 x 1080p (59.94/60)16:9; 720 x 480p (59.94/60)16:9; 720 x 576p (50)16:9
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 91.1
Vertical Frequency [Hz]
50 - 85

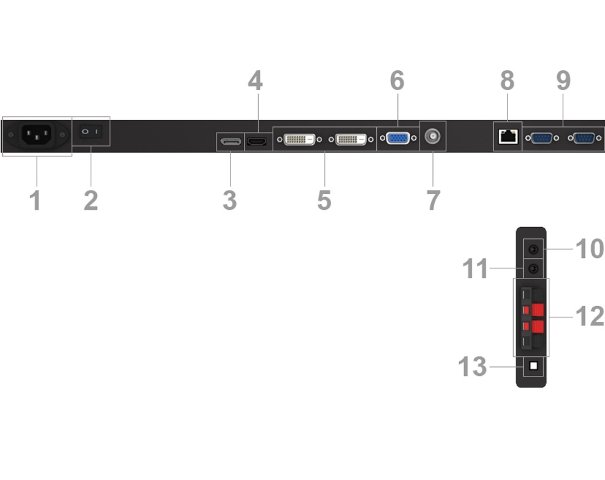

Connectivity
Input Video Analogue
1 x D-sub 15 pin; Composite (BNC)
Input Video Digital
1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP)
Input Audio Analogue
1 x 3,5 mm jack
Input Audio Digital
1 x HDMI; DisplayPort
Input Control
LAN 100Mbit; RS232
Output Video Digital
1 x DVI-D (with HDCP)
Output Audio Analogue
3,5mm jack
Output Control
RS232
Remote Control
LAN with SNMP; Remote Control IR; RS-232C (9-pin D-sub) Input and Output
Option Slot
Slot Technology
STv2 (compatible with Intel / NEC OPS standard)
Inrush Current [A]
max. 10
Power Consumption [W]
max. 61
Voltage / Current [V/A]
16/4
Electrical
Power Consumption [W]
112 Eco (shipment setting), 160
Power Savings Mode [W]
< 0.5 (ECO Standby); < 1
Power Management
VESA DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to +60
Mechanical
Dimensions (W x H x D) [mm]
Without stand: 1,059.3 x 613 x 46.1
Weight [kg]
Without stand: 20.7
Bezel Width [mm]
18.7 (left and right); 18.7 (top and bottom)
VESA Mounting [mm]
300 x 300 (FDMI); 4 holes; M6
Ingress Protection
IP40 (front); IP20 (back)
Available Options
Accessories
Feet (ST-4020); Speaker (SP-RM1, SP-TF1, SP-46SM); Wall mount (PDW S 32-55 L + P)
Option Slot
HD-SDI 1.5G and 3G; Intel Atom, Celeron and Core CPUs
Regulatory
Safety and Ergonomics
C-tick; CE; Energy Star 5.1; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Green Features
Energy Efficiency
Ambient light sensor; Annual energy consumption: 163 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy efficiency class: B; LED backlight
Ecological Materials
Manuals on CD; Mercury free; Optional feet
Ecological Standards
Energy Star 5.1
Additional Features
Special Characteristics
Advanced fan control; Automatic Alarm E-Mails; Copy display settings through RS232; DICOM Simulation; Hardware colour calibration possible; Input name adjustment; Matrix memory; NaViSet Administrator 2 - free download; OSD rotation for portrait mode; Programmable ambient light sensor; Rapid input switching; Scheduler; Screen saver functions; TileMatrix (10 x 10); User input priority definition; Various picture in picture options
Colour Versions
Black Front Bezel, Black Back Cabinet
Audio
Integrated Speakers (5 W + 5 W); Optional speakers NEC SP-RM1 (2x15W)
Plug and Play
VESA DDC2Bi
Shipping Content
Display; DVI-D cable; Free LAN control software (download); Power Cable; Remote Control (IR); slot cover for STv2
Warranty
additional services available; optional 4. + 5. year warranty extension 2
Operating Hours
24/7
1 adjusted usage conditions for face up/down installations, please refer to operational guidelines or contact our support
2 please refer to terms and conditions of warranty extensions
